Introduction to DevOps Tools

Dev

1. Plan

2. Code

   1.

3. Build

   1.

   2.

4. Test

   1.

Integrate

Ops

1. Deploy

2. Operate

   1.

   2.

   3.

   4. Monitor

      1. Nagios

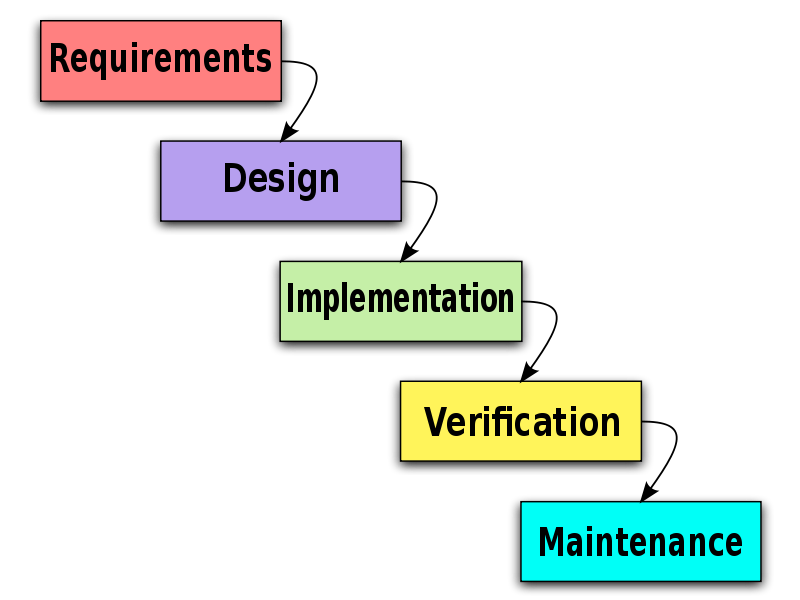

Waterfall Model

• Waterfall model is a traditional approach of software development

• In the waterfall model, development happens in a step-by-step manner

1. Requirement analysis

   • programmers accept the client requirements and analyze them

2. Design

   • programmers then come up with a project plan and a design architecture

3. Development/Implementation

   • programmers code the application as per project plan and design

4. Testing/Verification

   • testing ensures the application is error-free and meets the requirements

5. Maintenance

   • after the application is delivered, the operations team maintains the application

Disadvantages:

• Any new requirements from the client will restart the development cycle

• If a client is unhappy with the product, the entire project cycle is restarted

• Until the requirements are not clear, the project cannot start and is eventually delayed

Using the waterfall model, companies soon came to realize:

1. client requirements cannot be understood at once

2. it is costly to make changes during the end of the project

3. software must be delivered faster and with fewer resources

Agile Model

Following the Agile model, programmers create prototypes to understand client requirements

1. client sends his requirements to the programmer

2. programmer creates a prototype of the application

3. client provides feedback and list of changes to be made

The entire process of building a software is broken down into small actionable blocks called sprints (usually approximately 2 weeks long)

Agile Ceremony

• Plan

• Code

• Test

• Review

Advantages:

• client requirements are better understood because of the constant feedback

• the product is delivered much faster as compared to a waterfall model

Disadvantages:

• product gets tested only on developer computers and not on production systems

• developers and operations team work in separate silos

  • when the product fails in production servers, the operations team is clueless and sends the product back to the development team

Agile Model

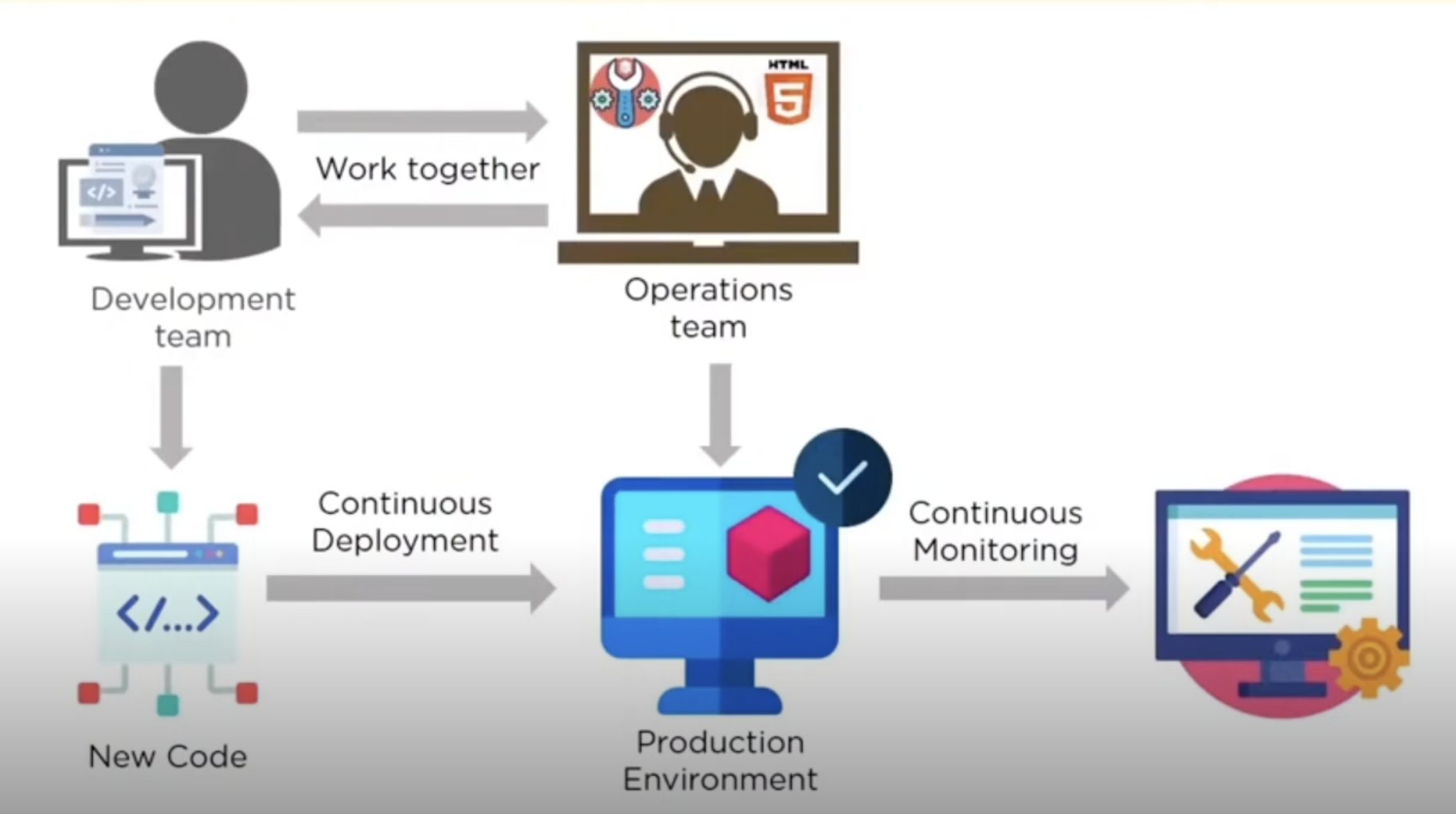

What is DevOps?

• DevOps is an evolution from Agile model of software development

• Agile addressed the gap between the development team and the operations team

1. the development team will submit the application to the operations team for Implementation

2. operations team will monitor the application and provide relevant feedback to developers

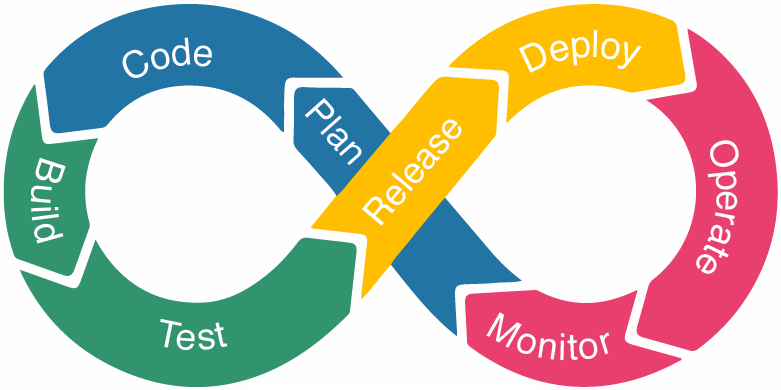

DevOps Phases

According to DevOps practices, the workflow in software development and delivery is divided into 8 phases

1. Plan

   1. business owners and software development team discuss project goals and create a plan

2. Code

   1. programmers then design and code the application and use tools like Git to store application code

3. Build

   1. build tools like Maven and Gradle, take code from different repositories and combine them to build the complete application

4. Testing

   1. application is tested using automation testing tools like Selenium and JUnit to ensure software quality

5. Integrate/Release

   1. when testing is complete, new features are integrated automatically to the already existing codebase

6. Deploy

   1. the application is packaged after release and deployed from development server to production server

7. Operate

   1. once software is deployed, an operations team performs activities such as configuring servers and provisioning them with the required resources

8. Monitor

   1. monitoring allows IT organization to identify specific issues of specific releases and understand the impact on end-users

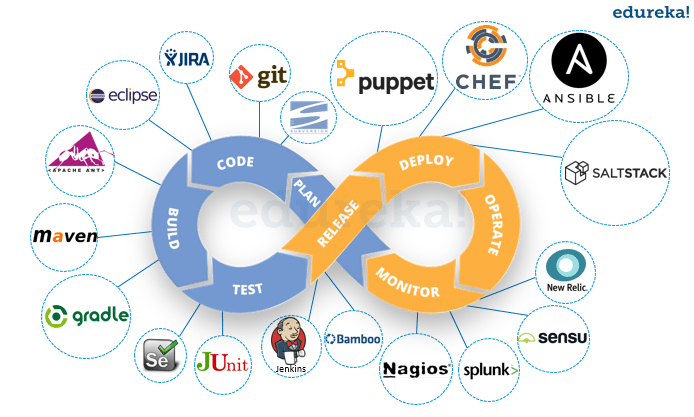

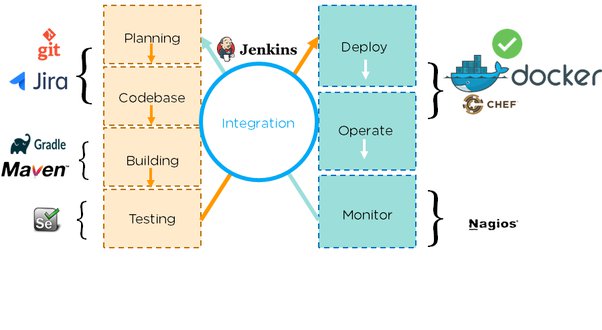

DevOps Tools

DevOps Process

Continuous Delivery

DevOps Advantages

Companies which follow DevOps, release more products and features within a short amount of time

• Time taken to create and deliver software is reduced

• Complexity of maintaining an application is reduced

• Improved collaboration between developers and operations team

• Continuous integration and delivery ensure faster time to market

Version Control System (VCS)

It allows all files to be stored in a single repository (repo) and also allows for easy collaboration on those files.

• all files in System A are stored as Version 1 in the remote repository

• someone wants to make changes to those files in the repo, they check them out, make the changes and then push them back onto the remote repo, thus updating the version history to Version 2

VCS allows you to store multiple versions of a system file in the remote repo

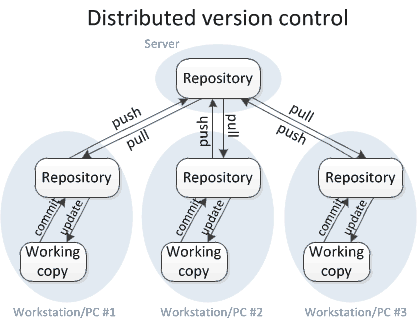

Distributed Version Control System

Ability for the code to be shared across a team of developers

• All the developers have the entire copy of code on their local system

• Distributed VCS moves from client-server approach of Central VCS to peer-to-peer approach

Git tool is an example of Distributed VCS

ref

What is Git?

Git is a distributed version control tool used for source code management

• used to track the changes in the source code

• allows multiple developers to work together

• supports non-linear development because of thousands of parallel branches

• has the ability to handle large projects efficiently

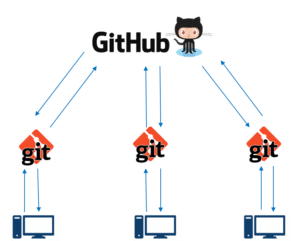

GitHub is the server

ref

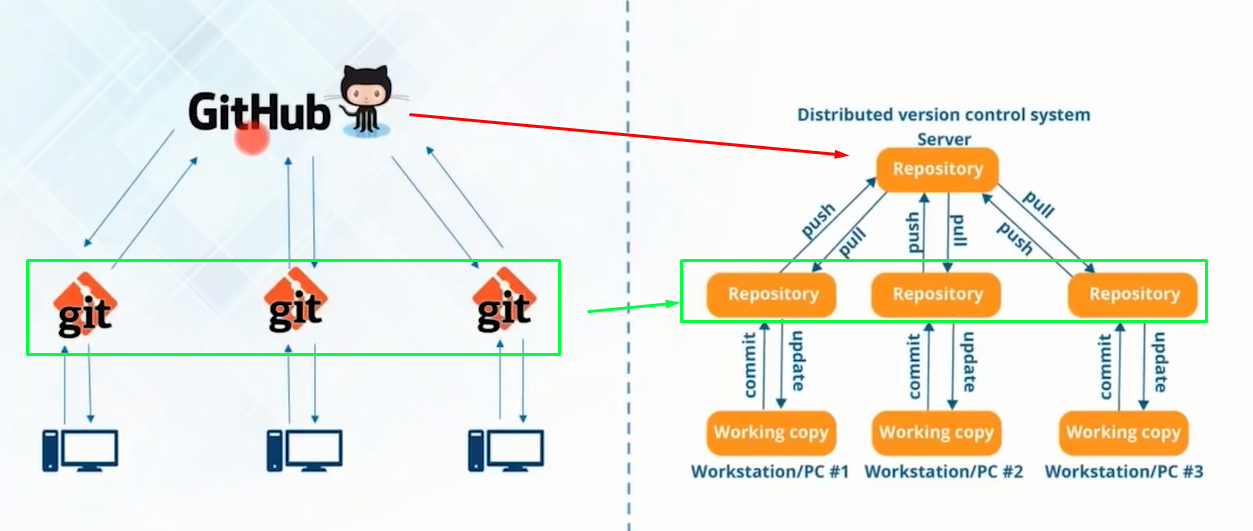

Git vs GitHub

ref

Git Architecture

• Local

  • Working Directory

    • folder where you are currently working

  • git add to staging area

    • you add your files to the staging area before making a commit

  • git commit to local repository

    • after making all the changes, you commit those files to the local repository

• Remote

  • git push to remote repository

    • you can push the committed files to the remote repository

  • git pull from remote repository

    • fetches all the changes from a remote repository to a local repository

• Local

  • git checkout from local repository

    • you can create new branches and switch to them as and when required

  • git merge

    • after you are done with the changes, you can merge the new branches to the master branch

Git Concepts

1. Fork and Clone

2. Adding Collaborators

3. Branch in Git

4. Pull from a remote

5. Git Rebase

Popular Git Commands

• git init: initialize a local git repository

• git add/git add .: add one or more files to a staging area

• git commit -m "some commit message": commit changes to head but not to the remote repository

• git status: check the status of your current repository and list the files you have changed

• git log: provides a list of all commits made on your branch

• git diff: view the changes you have made to the file

• git push origin <branch name>: push the branch to the remote repository so others can use it

• git config --global user.name "User Name": tell git who you are by configuring the author name

• git config --global user.email "email@example.com": tell git who you are by configuring the author email id

• git clone: create a git repository copy from a remote source

• git remote add origin <server>: connect your local repository to the remote server and add the server to be able to push to it

• git branch <branch name>: create a new branch

• git checkout <branch name>: switch from one branch to another branch

• git merge <branch name>: merge a branch into the active branch

• git rebase: reapply commits on top of another base tip

Before Jenkins

• Developers had to wait till the entire software code was built and tested to check for errors

• Developers had to check the entire source code to find the errors. In such cases, fixing bugs was very difficult

• There was no iterative improvement of code and software delivery process was slow

What is Jenkins

• a Continuous Integration tool that allows continuous development, test and deployment of newly created code

Nightly build and integration

• the team needs to commit and push all code by some arbitrary time (usually end of the work day)

Continuos Integration

• the team no longer has an arbitrary time to push code, now they can commit and push whenever it is feasible to do so

• test and verification services are now built into the environment, so whenever the developer pushes the code to the repo, it can be tested and verified during the push

What is Continuous Integration

• developer writes and submits code to a repository

• repository sends the code to a Continuous Integration (CI) server

• CI server runs tests against the code and if it fails, then sends it back to the developer to fix

  • This allows the developer to do two things:

    • to not break the build

    • to not run all the tests locally on their machine

  • If pass, go on to the tester to run more tests than the standard tests the CI server runs

    • if the tester catches errors, then they can send directly back to the developer

• GOAL: Release and deploy

Continuous Integration Tools

• Bamboo

  • can run multiple builds in parallel for faster compilation

  • it has built in functionality to connect with repositories and has build tasks for Ant, Maven, etc.

• Buildbot

  • an open-source framework for automating software build, test, and release processes

  • it is written in Python and supports distributed, parallel execution of jobs across multiple platforms

• Apache Gump

  • designed with the aim to build and test all the open-source Java projects every night

  • it makes sure that all the projects are compatible at both API level and functionality level

• Travis CI

  • it is a hosted, distributed continuous integration service used to build and test software projects hosted at GitHub

  • it's built for projects and teams of all sizes and supports over 20 different languages

• Jenkins

  • it is an open-source automation server written in Java

  • used to automate software development process via continuous integration facilitates continuous delivery

Features of Jenkins

1. Easy installation

   • self-contained Java-based program, ready to run with packages for Windows, Mac OS X, and Unix-like OS

2. Easy configuration

   • it can easily set up and configured via its web interface, which includes error checks and built-in help

3. Plugins

   • it has hundreds of plugins in the Update Center and integrates with every tool in the CI and CD toolchain

4. Extensible

   • it can be extended via its plugin architecture and provides nearly infinite possibilities for what it can do

5. Distributed

   • it can easily distribute work across multiple machines, helping in faster builds, tests, and deployments across multiple platforms

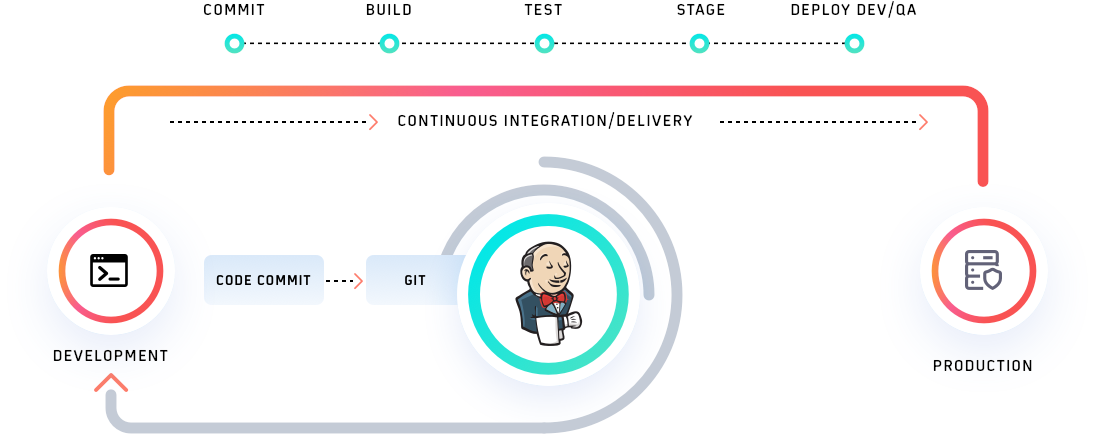

Jenkins Pipeline

Jenkins Architecture

• Broken up into two sections

  • Section 1

    • Developers commit changes to the source code

  • Section 2

    • Jenkins server checks the repository at regular intervals and pulls any newly available code

    • Build Server (such as Maven) builds the code into an executable file

      • In case the build fails, feedback is sent to the developers

    • Test Server (such as Selenium) for testing

      • if the test fails, feedback is immediately passed on to the developers

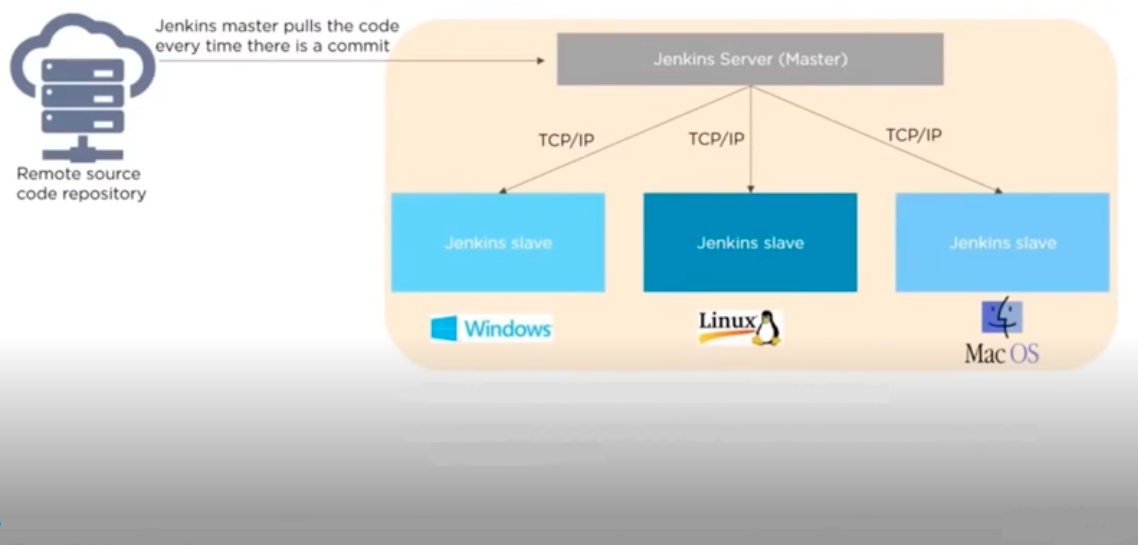

Jenkins Master-Slave Architecture

• Jenkins master distributes its workload to all the slaves

• On request from Jenkins master, the slaves carry out builds and tests and produce test reports

Jenkins Installation

• Web-Application written in Java can be run/installed in 3 ways:

1. Windows or Linux/Unix services

2. Generic war file

3. Install on any Java-based web servers—Apache Tomcat

Jenkins Prerequisites

• There are some prerequisites to install Jenkins

  • Java Development Kit (JDK 1.7 or 1.8)

  • 2GB RAM

  • Set environment variable JAVA_HOME to point to JDK base directory

    • ex: C:\Program Files\Java\jdk1.8.0_162

Jenkins root folder

Jenkins stores all its configuration data, jobs and project workspace in a Root/Parent folder

• C:\Program Files (x86)\Jenkins or

• C:\User_Home_Dir.Jenkins

What is Docker?

Docker is a tool used to automate the deployment of applications in lightweight containers so that applications can work efficiently in different environments

An OS-level virtualization software platform that enables developers and IT administrators to create, deploy and run applications in a Docker Container with all their dependencies

• Multiple containers run on the same hardware

• Maintains isolated applications

• Highly productive

• Quick and easy configuration

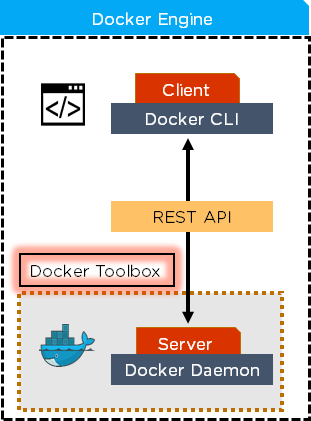

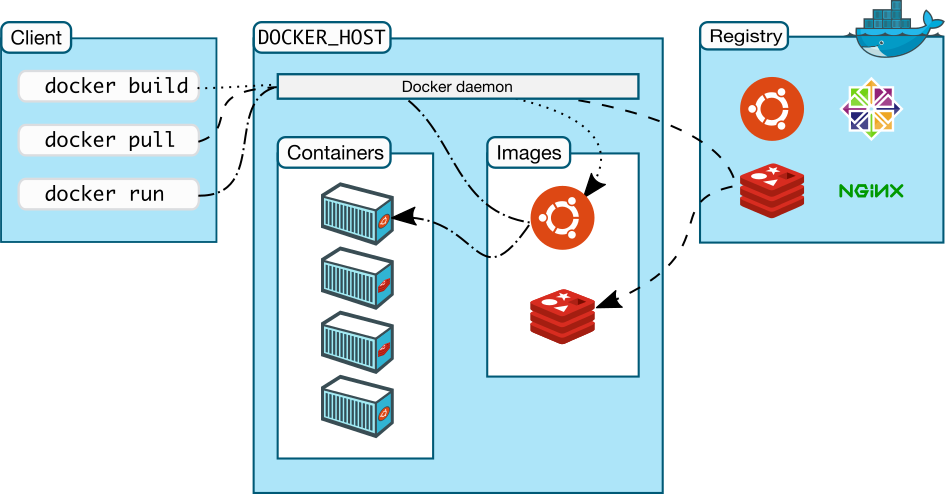

How does Docker work?

• Docker Engine or Docker is the base engine install on your host machine to build and run containers using Docker components and services

• It uses a client-server architecture

• Docker Client and Server communicate using Rest API

• Docker Client is a service that runs a command. The command is translated using REST API and is sent to the Docker Daemon (server)

• Then, Docker Daemon checks the client request and interacts with the operating system in order to create or manage containers

Components of Docker

1. Docker Client and Server (Engine)

2. Docker Images

3. Docker Containers

4. Docker Registry

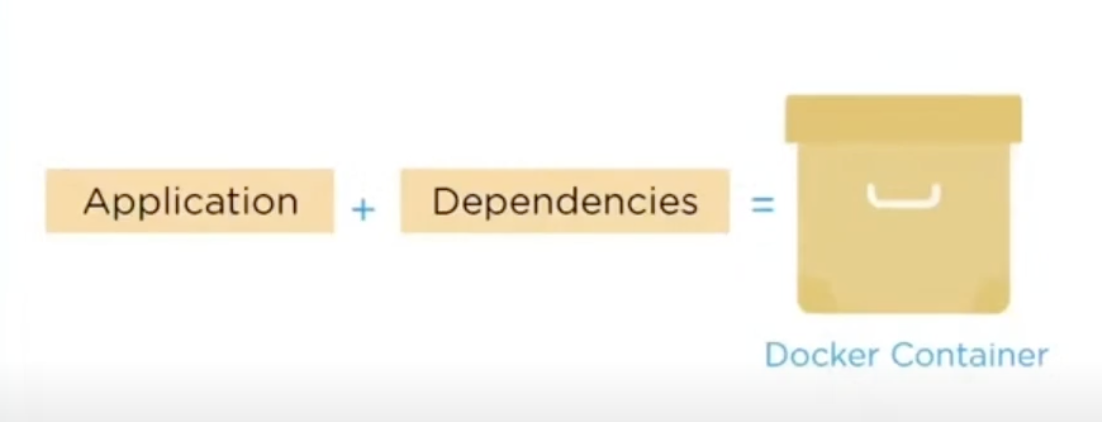

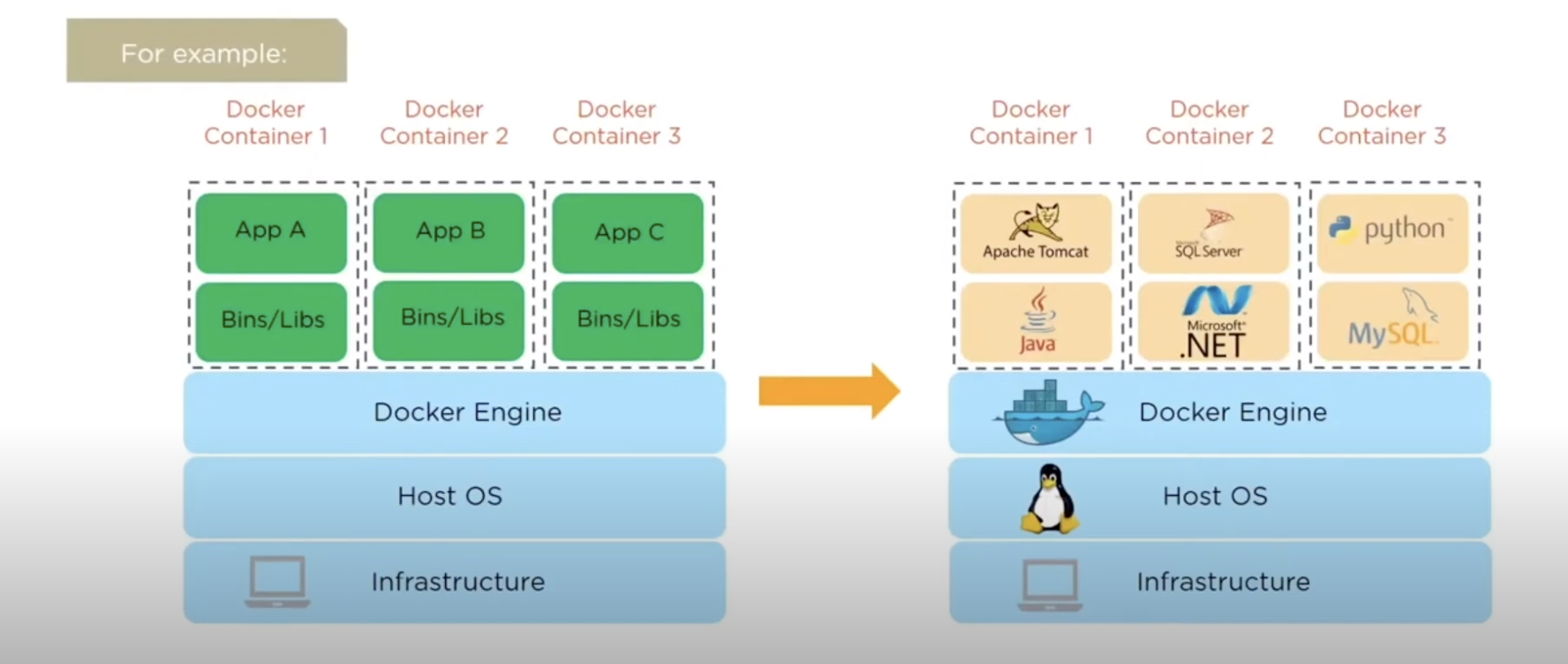

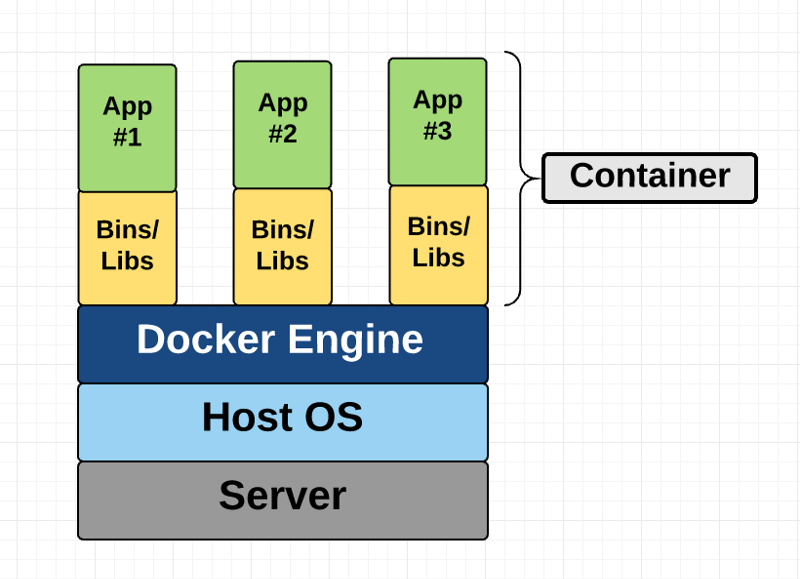

Docker Container

• Docker Container is a standalone, executable software package that includes applications and their dependencies

• Numerous Docker Containers run on the same infrastructure and share an operating system (OS) with its other containers

• Here, each application runs in isolation

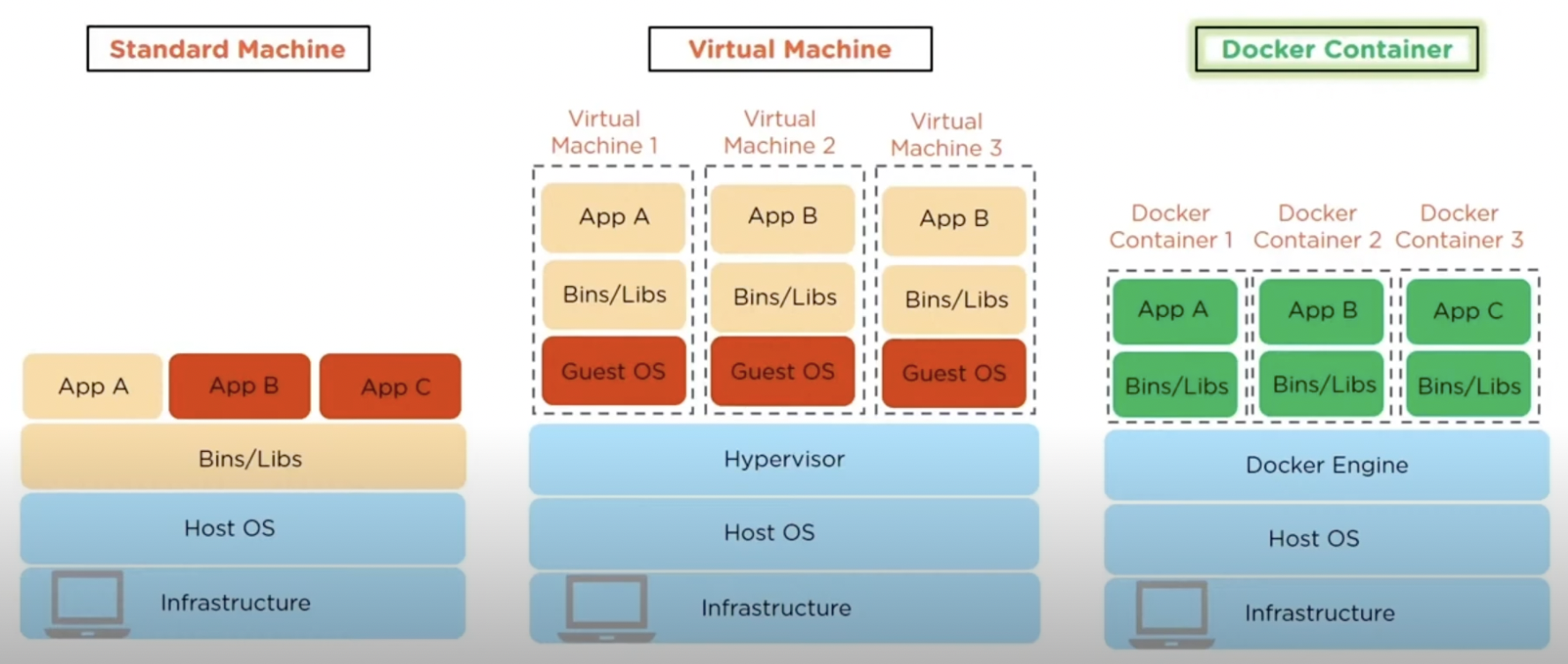

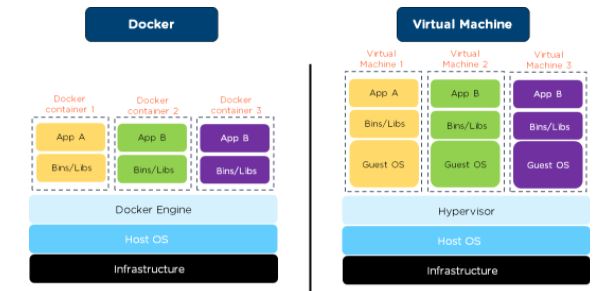

Virtual Machine vs Docker

Major differences are:

Virtual Machine	vs	Docker
📈	Memory Usage	📉
👎	Performance	👍
	Portability
	Boot-up time

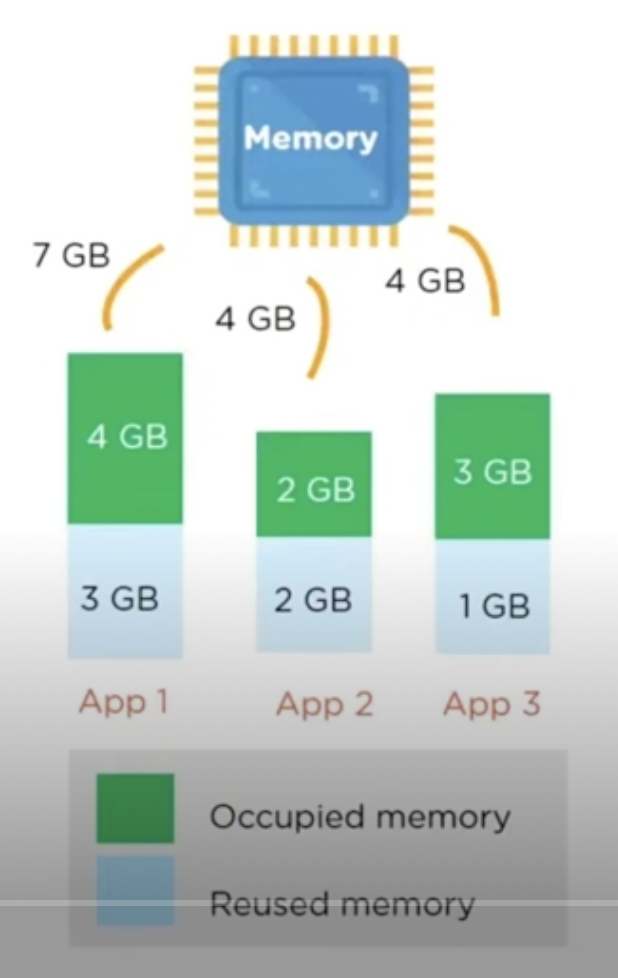

• VM - if you allocate 9 GB of memory and use only 3 GB leaving 6 GB free, you cannot use that 6 GB for anything else.

• Docker—if you allocate 9 GB, and 6 GB are free, those 6 GB can be reused for another container.

• VM - running multiple virtual machines leads to unstable performance

• Docker—containers have a better performance as they are hosted on a single Docker Engine

• VM—Portability issues while executing applications in different platforms

• Docker—Multiple software can be encapsulated in a single container and can be easily deployed to different platforms

• VM - takes long boot-up time (minutes)

• Docker—Takes less boot-up time (milliseconds)

Advantages of Docker

• Rapid Deployment

• Portable

• Better Efficiency

• Faster Configuration

• Scalability

• Security

Advanced concepts in Docker

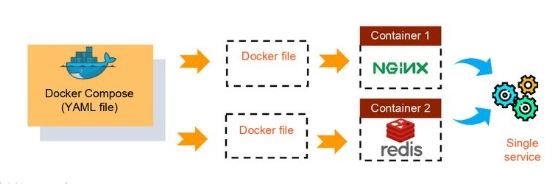

Docker Compose

• Docker Compose is used for running multiple containers as a single service

• Here, each container runs in isolation but can interact with each other

• All Docker Compose files are YAML files

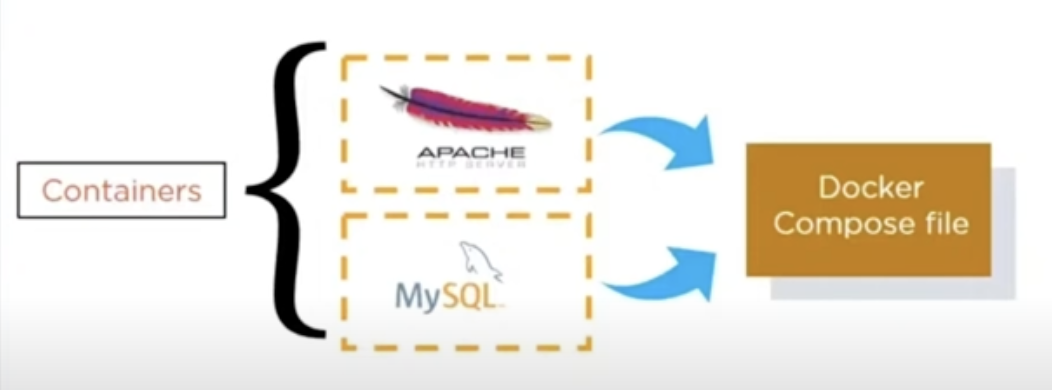

For example:

If you have an application which requires Apache server and MySQL database, you could create one Docker Compose file which can run both containers as a service without the need to start each one separately

Docker Compose	Docker Swarm
It creates multiple containers on a single host	It creates multiple containers on multiple hosts
It uses YAML file to manage different containers as a single service	It doesn't use any file but helps you to manage different Docker hosts in a cluster

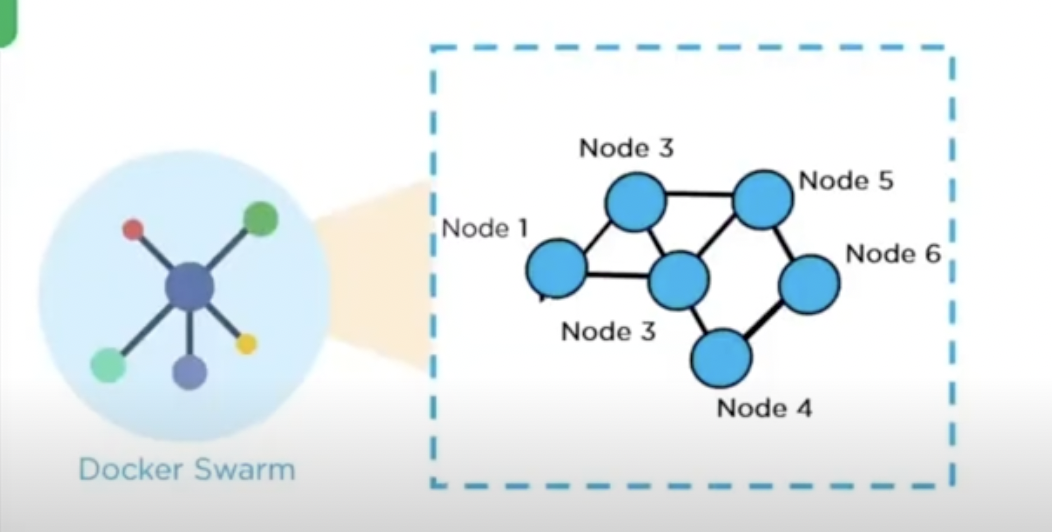

Docker Swarm

• Docker Swarm is a service for containers which allows IT administrators and developers to create and manage a cluster of swarm nodes within the Docker platform

• Each node of Docker Swarm is a Docker Daemon, and all Docker Daemons interact using the Docker API

• Services can be deployed and accessed by nodes of the same cluster

• Creating a service, a user has to specify which container image to use

• Service is either global or replicated

  • A global service will run on every Swarm node

  • A replicated service, the manager node distributes tasks to worker nodes

• A service is a description of a task or the state, whereas a task does the work

• Docker enables a user to create services which can start tasks

• When a task is assigned to a node, it cannot be assigned to another node

• Swarm node has a backup folder, in case the main node fails, it can be used to restore the data onto a new swarm

• Containers are launched using services

  • a service is a group of containers of the same image

  • services enables to scale your application

• Before you can deploy a service in Docker Swarm, you must have at least one node deployed

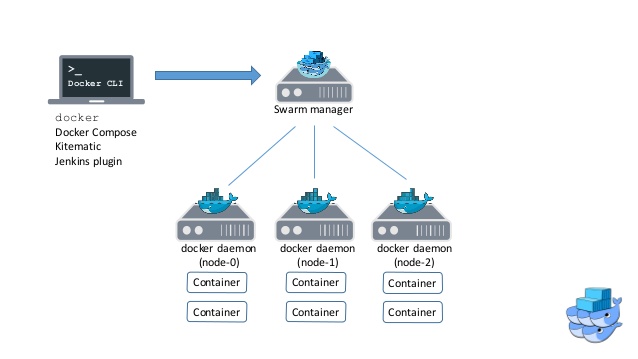

• A swarm consists of two types of nodes:

  • Manager node

  • worker node

• Manager node maintains cluster management tasks

  • reschedule containers on node failures

  • knows the status of all worker nodes in a cluster

  • it is possible to have multiple manager nodes, but there can only be one primary manager node, which gets elected by the other Manager nodes

• Worker nodes receive and execute tasks from manager node

  • has an agent, which reports on the state of the node's tasks to the manager

  • communicate with the manager node using a REST API over HTTP

Basic Docker commands

What is a Docker Container?

Why Docker Container?

What are Orchestration Tools?

Orchestration tools are a set of commands used to deploy and connect an application. These tools focus on the process and not their outcome.

There are numerous orchestration tools. The two most important are Docker Swarm and Kubernetes.

Docker Swarm vs Kubernetes

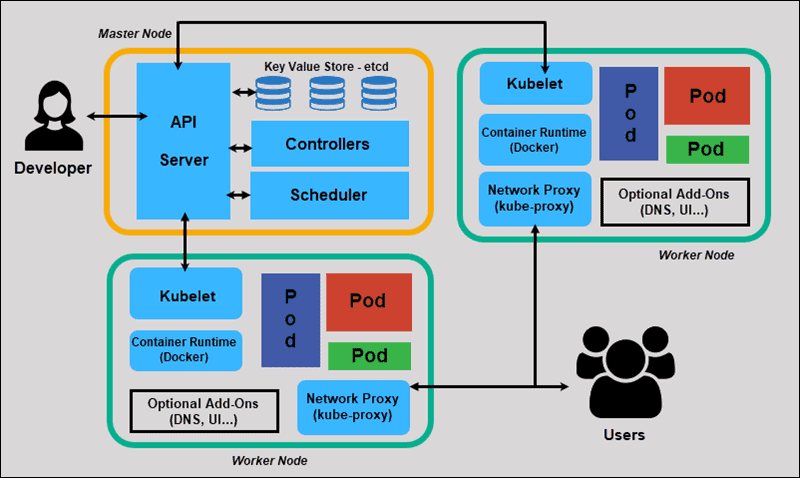

Kubernetes Architecture

• Kubectl is the workstation used for running Kubernetes commands (cli)

• Master Node

  • The master node is the most vital component responsible for Kubernetes architecture

  • There is always one node to check for fault tolerance

  • The master node has various components like:

    1. ETCD (Cluster store)(Key-value pairs)

       • This component stores the configuration details and essential values

       • It communicates with all other components to receive the commands and work in order to perform an action

       • It also manages network rules and post forwarding activity

    2. Controller Manager

       • It is a daemon (server) that runs in a continuous loop and is responsible for gathering information and sending it to the API server

       • It works to get the shared set of clusters and change them to the desired state of the server

       • The key controllers are replication controller, endpoint controller, namespace controller, and service account controllers

       • The controller manager runs controllers to handle nodes, endpoints, etc.

    3. Scheduler

       • The Scheduler assigns the tasks to the slave nodes

       • It is responsible for distributing the workload, and it stores resource usage information of every node

       • It tracks how the working load is used on clusters and places the workload on the available resources

    4. API Server

       • It acts as an entry point for all REST commands used for controlling the clusters

       • it implements an interface which makes different tools and libraries to communicate effectively

• Worker/Slave Nodes

  1. Pod

     • It is a combination of containers that logically run together on nodes

  2. Docker (container runtime) (does not have to Docker)

     • It helps in running the applications in an isolated but lightweight operating environment. It runs the configured pods.

  3. Kubelet

     • It is a service responsible for conveying information to and fro to the control plane service

     • It gets the configuration of a Pod from the API server and ensures that the containers are working efficiently

     • The Kubelet process is responsible for maintaining the work status and the node server

  4. Kubernetes Proxy

     • It acts as a load balancer and network proxy to perform service on a single worker node

     • It manages pods on nodes, volumes, secrets, creation of new containers, health check-ups, etc.

     • It is a proxy service that runs on every node and helps in making services available to the external host

What is Ansible?

A tool that provides:

1. IT automation

   • instructions are written to automate the IT professional's work

2. Configuration management

   • allows a small IT team to configure a large number of systems with code (YAML)

   • consistency of all systems in the infrastructure is maintained

   • makes configuring a large amount of systems easier for a few IT personnel

   • automates the same task that needs to be repeated multiple times

   • reduces human error by automating the task using code vs. manual configuration

3. Automatic deployment

   • applications are deployed automatically in a variety of environments

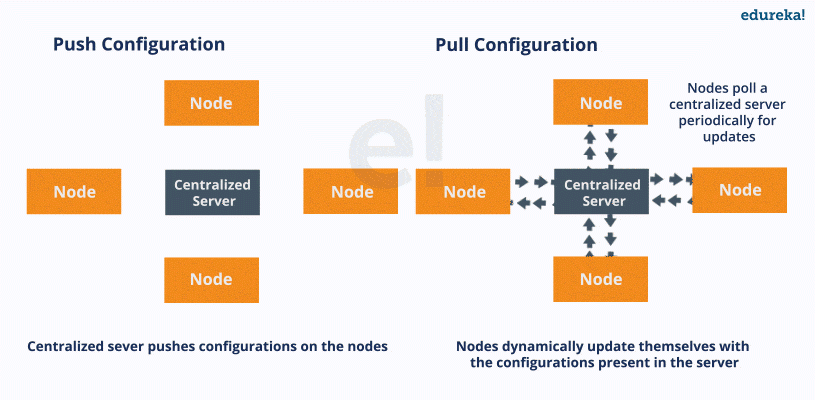

• Pull configuration: Nodes check with the server periodically and fetch the configuration from it

• Push configuration: Server pushes configuration to the nodes

  • entire control lies with your master/server system

    • write your configuration files in YAML

  • responsible to push the configuration onto your remote node/client

Ansible, unlike Chef and Puppet, is a "push" type of configuration management tool

• advantage of a push configuration tool over pull configuration tool

  • unlike a pull type, no extra overhead weight of client software installed on the remote machines and no need for constant communication back to the server/master

Why Ansible?

• falls on the operations side of the DevOps equation

• code is written once for the installation and deployed multiple times

  • it allows IT personnel to work on more productive tasks rather than repetitive ones

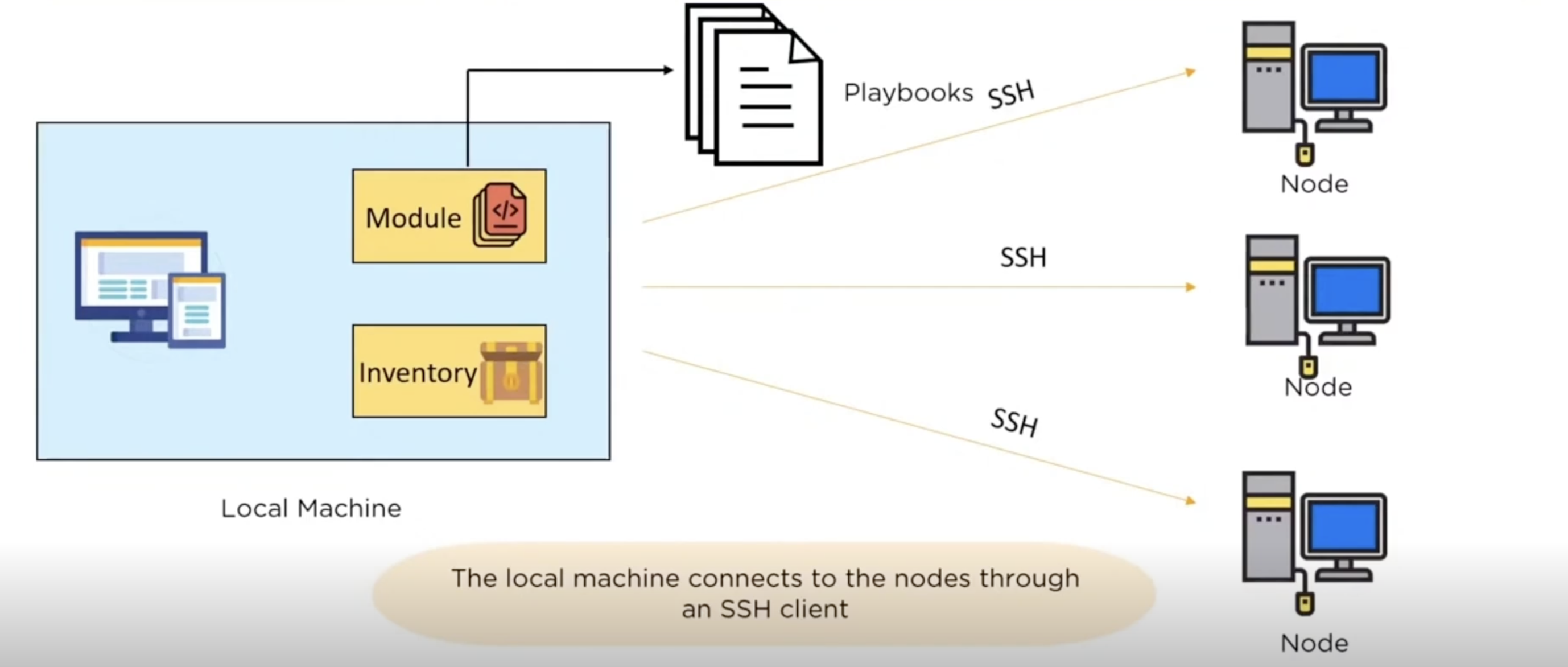

Ansible Architecture

1. Local Machine: store all configuration files to be pushed to the remote machines

   • connects to the nodes through an SSH client

   • this is where Ansible is installed

2. Nodes: systems to be configured

   • controlled by the local machine

3. Module: a collection of configuration code files called playbooks

4. Inventory: a document that groups the nodes under specific labels

   • managed by the local machine

Configuration

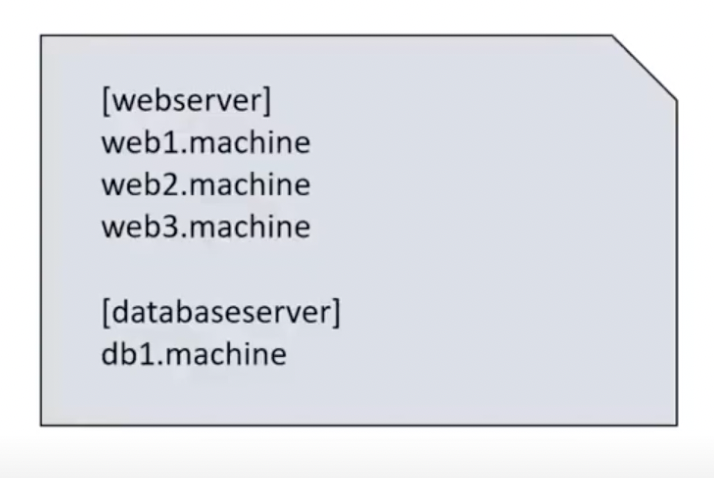

1. Inventory file (host file) - contains your groups

• maintain the structure of our network environment

• classifies nodes into groups

• • host names of the nodes are specified under group names

1. Playbooks

   • all the configuration files that are written for Ansible

   • written in YAML

   • core of Ansible

   • set of instructions to configure the nodes

playbook file example

• become means you need to become root to execute the playbook (aka privilege escalation)

• tasks are actions the playbook needs to execute (httpd is basically Apache server)

• to check the syntax of the playbook: ansible-playbook <playbook-file> --syntax-check

• to push the playbook onto the remote node/client machine: ansible-playbook <playbook-file>

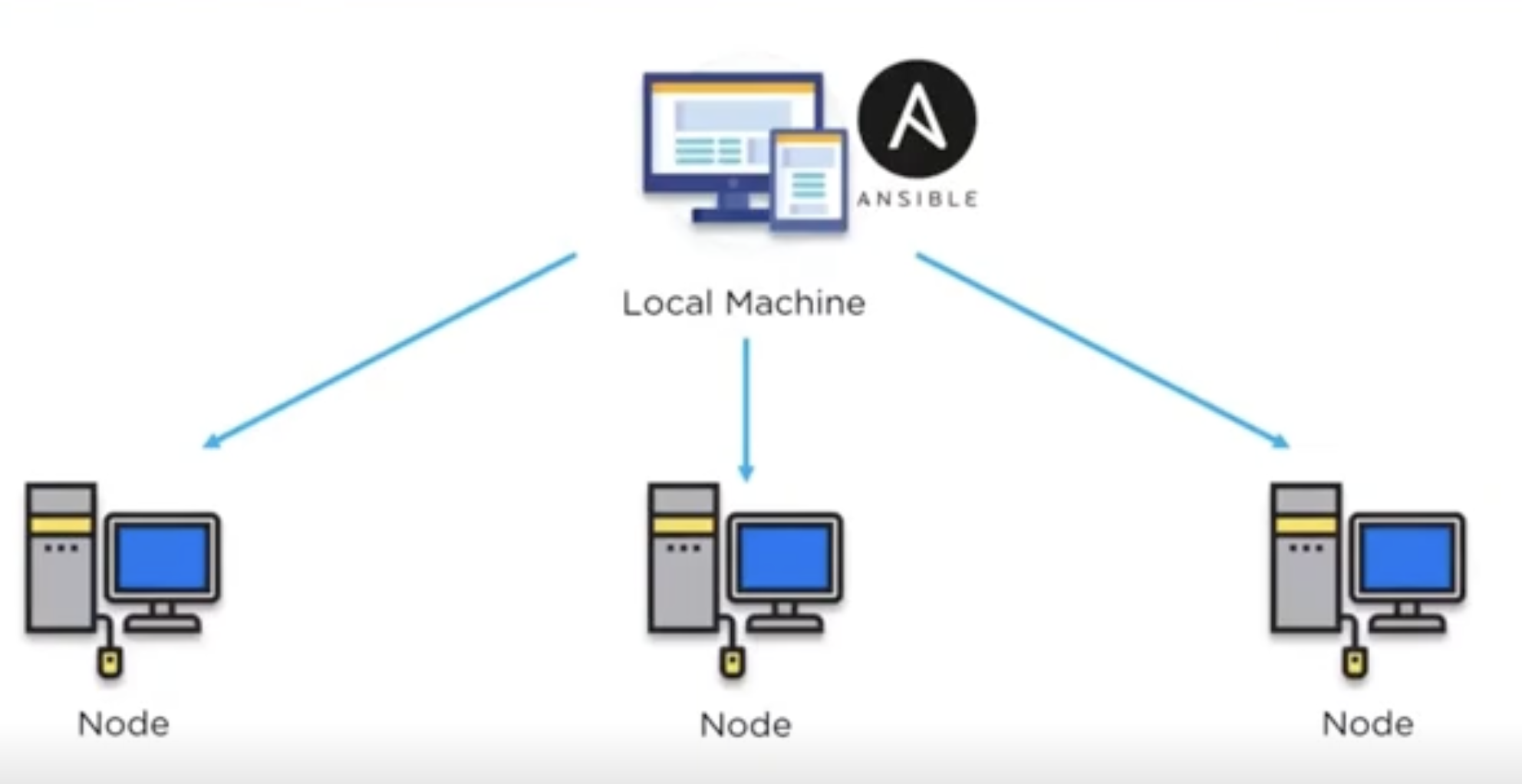

Working with Ansible

• Ansible installed on local machine only

  • makes Ansible agentless

• playbook and inventory are written at the local machine

• local machine connects to the nodes through SSH

• local machine gathers the facts of each node

  • facts indicate the state of the nodes

• playbooks are sent to the nodes

Ansible Tower

• created by Red Hat

• a framework for Ansible

  • Ansible is a CLI tool

  • Ansible Tower provides a GUI

  • reducing the dependency on the command prompt Windows

  • no need to type long commands, tasks can be performed in a single click

Development

General DevOps Questions

1. How is DevOps different from Agile methodology?

• DevOps is a culture that allows the Development and the Operations team to work together. This results in Continuous Development, Testing, Integration, Deployment and Monitoring of the software throughout the lifecycle.

• Agile is a software development methodology that focuses on iterative, incremental, small and rapid releases of software along with customer feedback.

• Agile addresses gaps and conflicts between the Customer and Developers

2. What are the different phases in DevOps?

• Two main phases

  • Planning & Coding

  • Deploying

3. Mention some of the core benefits of DevOps.

Technical benefits	Business benefits
Continuos software delivery	Faster delivery of features
Less complex problems to manage	Stable operating environments
Early detection and faster correction of defects	Improved communication and collaboration between the teams

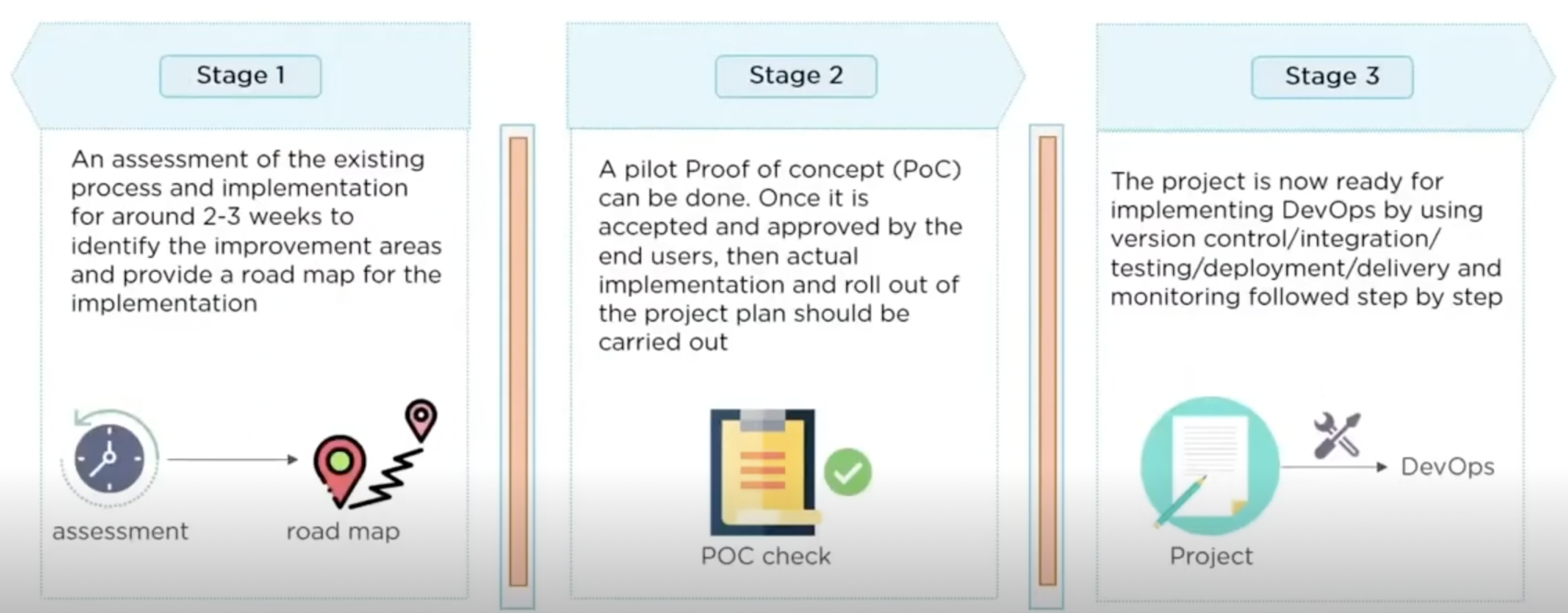

4. How will you approach a project that needs to implement DevOps?

• The following approaches can be used to implement devOps in a certain project:

Operations
