Head First Java

incomplete

Chapter 1 Breaking the Surface

The Way Java Works

  1. Source: Create a source document (filename.java)

  2. Compiler: Run the document through a source code compiler.

    1. this will check for errors and won't let you compile until it is satisfied

  3. Output (code): Compiler creates new file containing bytecode

    1. Java will be able to translate/interpret this file into something it can run

    2. The compiled bytecode is platform independent

  4. Virtual Machines: A java virtual machine is used to run java bytecode code

    1. This is what makes java code machine independent

What you'll do in Java

  1. Type your source code

  2. Compile your source file

javac <sourcefile.java>

  1. This compiles the code and creates a sourcefile.class file

  • this is the bytecode

  1. Run the program

  • java sourcefile

  • This starts the Java Virtual Machine (JVM)

  • The JVM translates the bytecode into something the underlying platform understands

Code structure in Java

source file
class file
method 1
method 2
  • Put a class in a source file

  • Put methods in a class

  • Put statements in a method

What goes in a source file?

  • source code file holds one class definition

public class Dog { }

What goes in a class?

  • a class has one or more methods

  • the method holds instructions on what that method should do

  • the method must be declared inside a class

public class Dog { void bark() { } }

What goes in a method?

  • within the curly braces of a method, write the instructions for how that method should be performed

  • method code is basically a set of statements

public class Dog { void bark() { statement1; statement2; } }

Anatomy of a class

When the JVM starts running, it looks for the class you gave it at the command line. Then is starts looking for a specially written method that looks exactly like:

public static void main (String[] args){ // your code goes here }

Next, the JVM runs everything between the curly braces of your main method. Every Java application has to have at least one class, and at least one main method (main per application not per class)

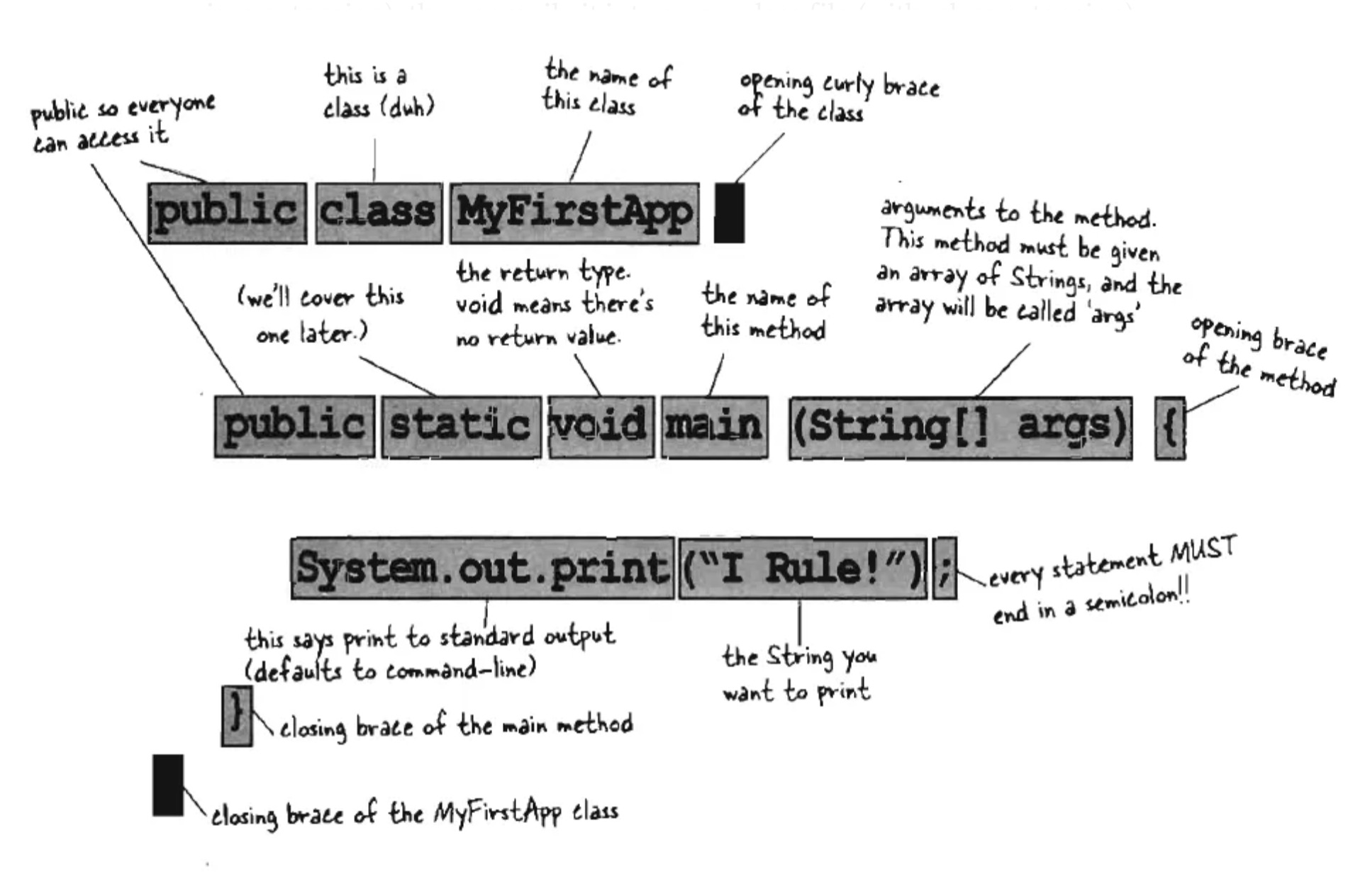

java class anatomy

Writing a class with a main

  • everything goes into a class

  • running a program tells the JVM to load class, then start executing the main() method

  • keep running till all the code in the main method is finished

  • main() method is the entry point of the whole app

Remember:

Save
Compile
Run

Syntax Fun

  • each statement must end in a semicolon x = x + 1;

  • a single-line comment begins with two forward slashes // single-line comment

  • most white space does not matter x = 3 ;

  • variables are declared with a name and a type int weight

  • classes and methods must be defined within a pair of curly braces

public void go() { // code goes here }

Looping and looping and...

Java jas three main looping constructs:

  1. while

  2. do-while

  3. for

Concentrate on the while loop for now

  • while some condition is true, do everything inside the loop block

  • key to a loop is the conditional test

Simple boolean tests

  • do a simple boolean test by checking the value of a variable, using a comparison operator including:

    • < (less than)

    • > (greater than)

    • == (equality)

int x = 4; // assign 4 to x while(x > 3) { // loop code will run because x is greater than 3 x = x - 1; // or we'd loop forever } int z = 27; while(z == 17) { // loop code will not run because z is not equal to 17 }

while loop example: Loopy.java

public class Loopy { public static void main (String[] args){ int x = 1; System.out.println("Before the loop"); while(x < 4) { System.out.println("On the loop"); System.out.println("Value of x is " + x); x = x + 1; } System.out.println("After the loop!"); } }

output

javac Loopy.java java Loopy Before the loop In the loop Value of x is 1 In the loop Value of x is 2 In the loop Value of x is 3 After the loop!

Conditional branching

An if test is basically the same as the boolean test in a while loop - except instead of saying " while this..." you'll say, " if there is..."

IfTest.java

class IfTest { public static void main(String[] args){ int x = 3; if (x == 3){ System.out.println("x must be 3"); } System.out.println("This runs no matter what"); } }

In the example above, if the statement is true, then two statements will print out, but regardless, at least one statement will always print.

output

javac IfTest.java java IfTest x must be 3 This runs no matter what

Now, we can add an else to the condition, so that we can say something like " if this then do this else do this..."

IfTest2.java

class IfTest2 { public static void main(String[] args){ int x = 2; if (x == 3){ System.out.println("x must be 3"); } else { System.out.println("x is NOT 3"); } System.out.println("This runs no matter what"); } }

output

javac IfTest2.java java IfTest2 x is not 3 This runs no matter what

BeerSong.java

public class BeerSong { public static void main(String[] args){ int bottleCount = 99; String word = "bottles"; while(bottleCount > 0){ System.out.println(bottleCount + " " + word + " of beer on the wall."); System.out.println(bottleCount + " " + word + " of beer."); System.out.println("Take one down. Pass it around."); bottleCount = bottleCount - 1; if(bottleCount > 0){ if(bottleCount == 1){ word = "bottle"; } System.out.println(bottleCount + " " + word + " of beer on the wall."); } else { System.out.println("No more bottles of beer on the wall."); } } } }
