Docker Containers and Kubernetes Fundamentals

incomplete

Introduction to Microservices

Microservices Concepts

Microservice Architecture

services are fine-grained and the protocols are lightweight

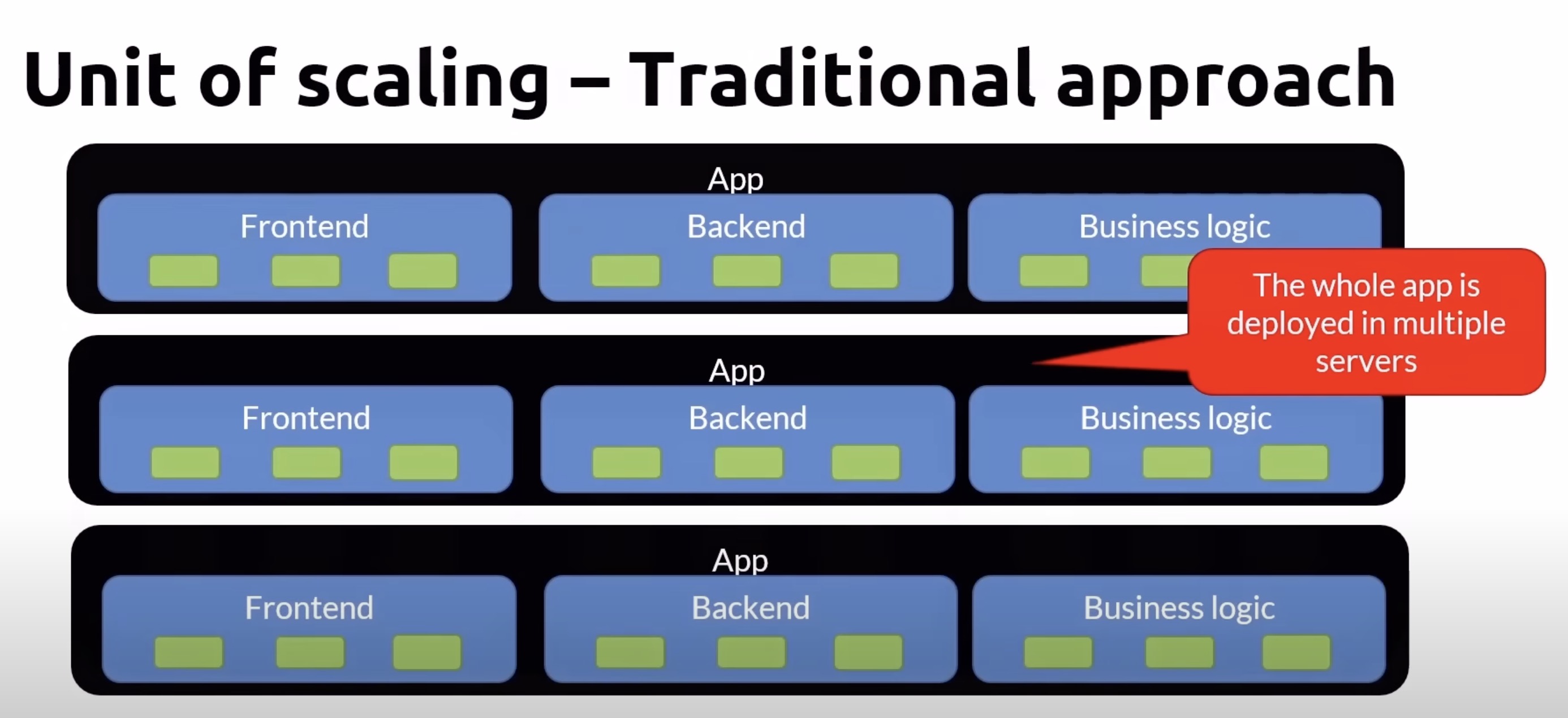

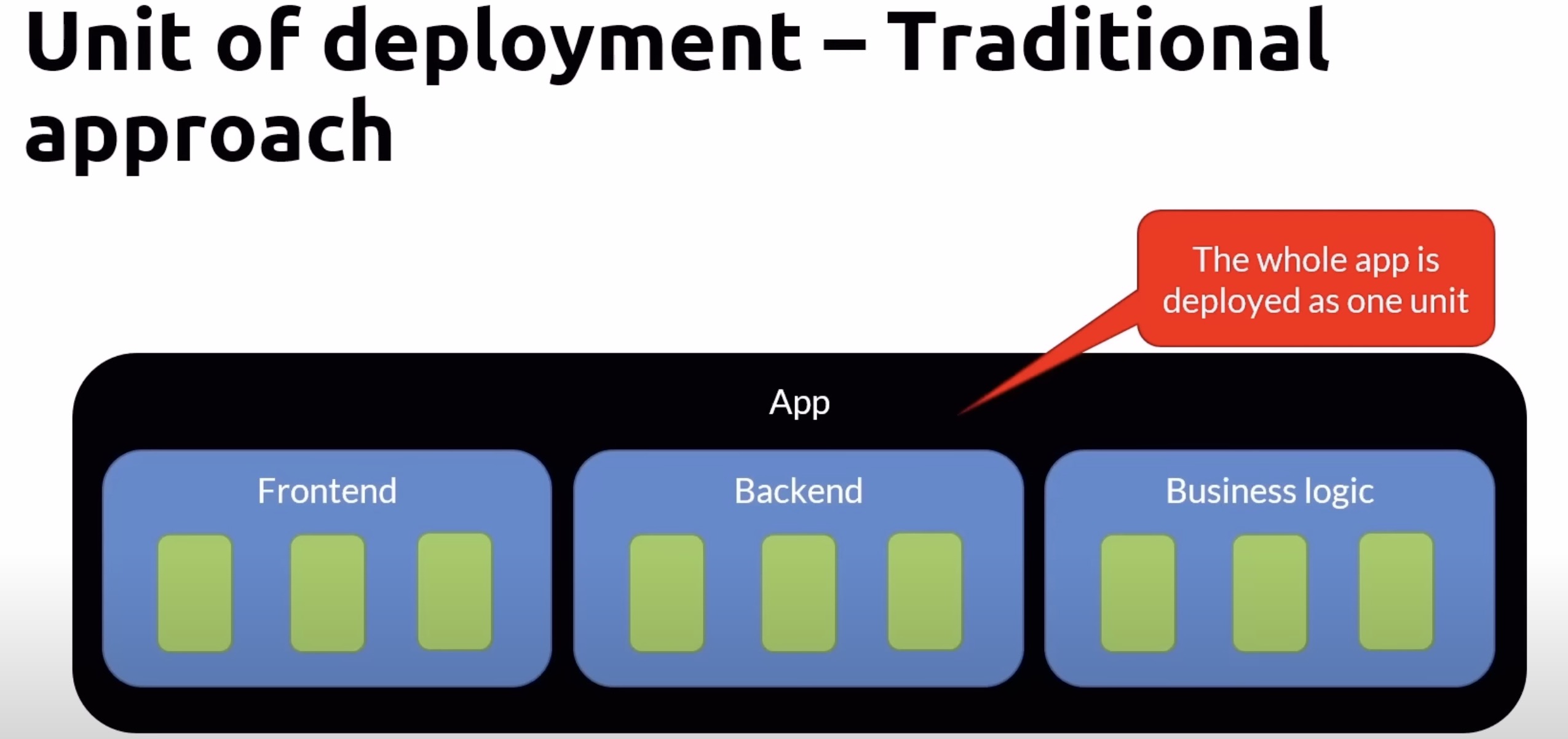

Monolithic Architecture

built as a single unit
deployed as a single unit
duplicated on each server

Example:

Microservices

segregates functionality into smaller separate services each with a single responsibility

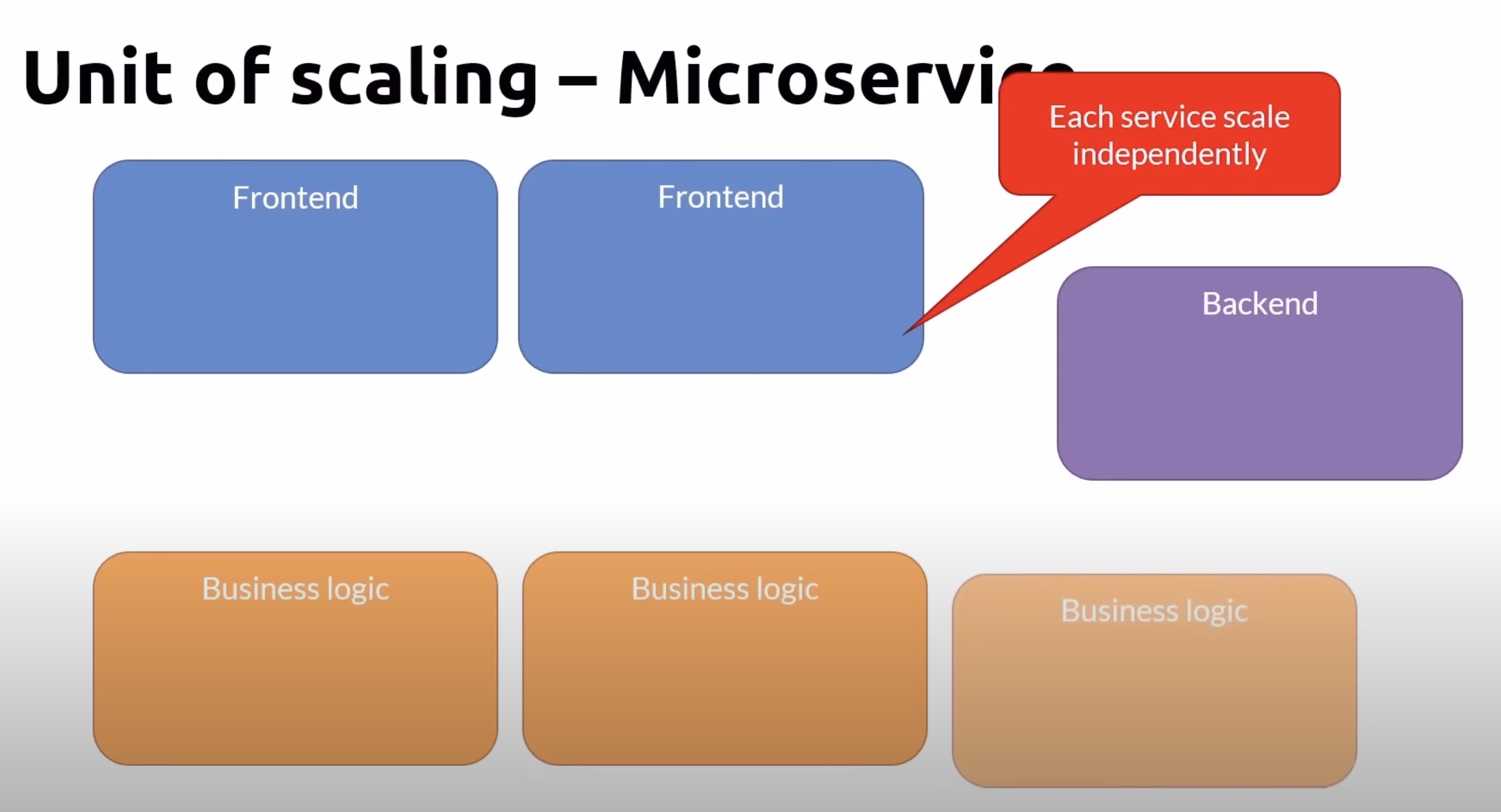

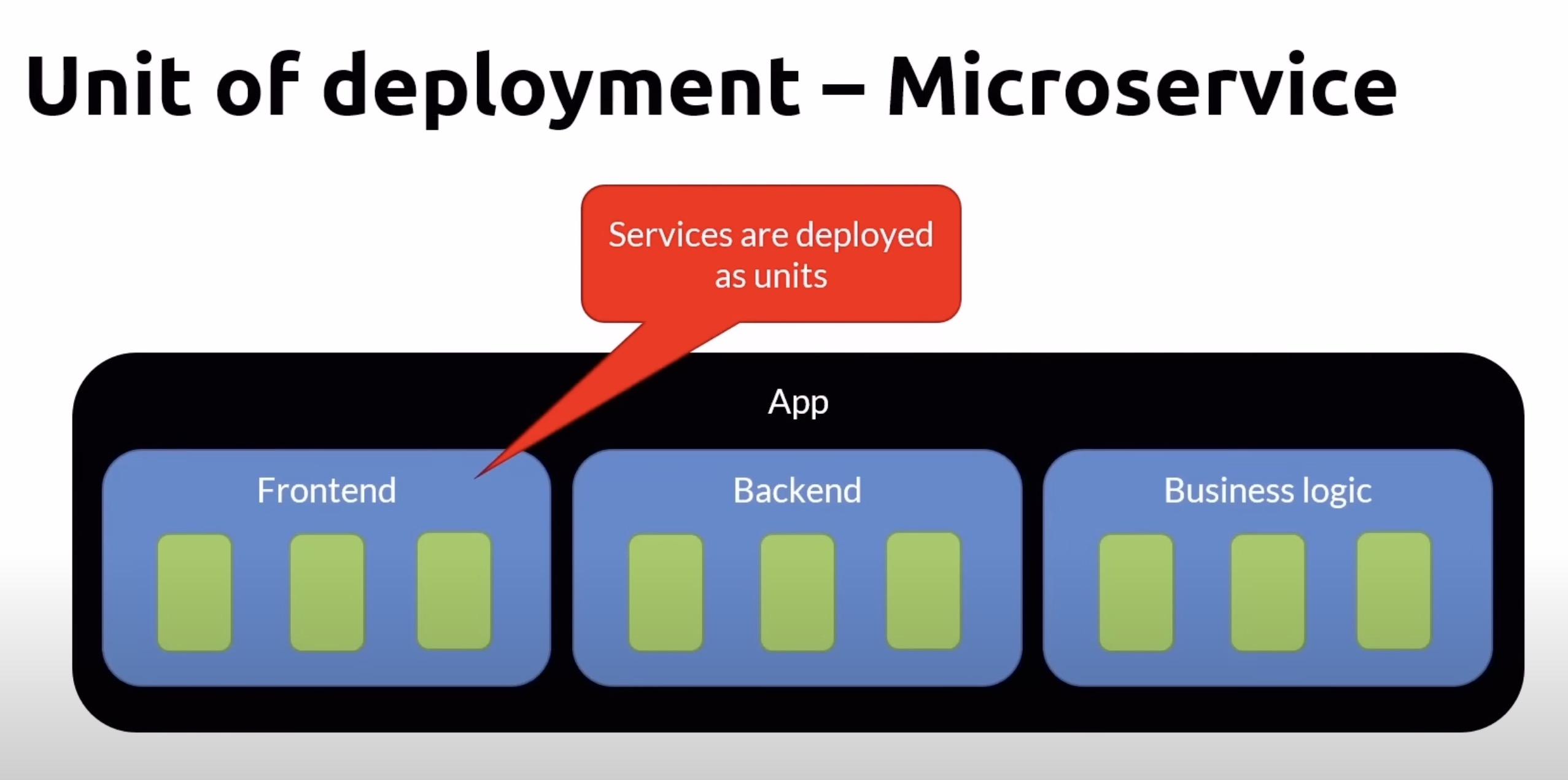

scales out by deploying each service independently
loosely coupled
enable autonomous development by different teams, languages and platforms
it can be written by smaller teams
each microservice can own its own data/database

From Monolith to Microservices

break your application/system into small units

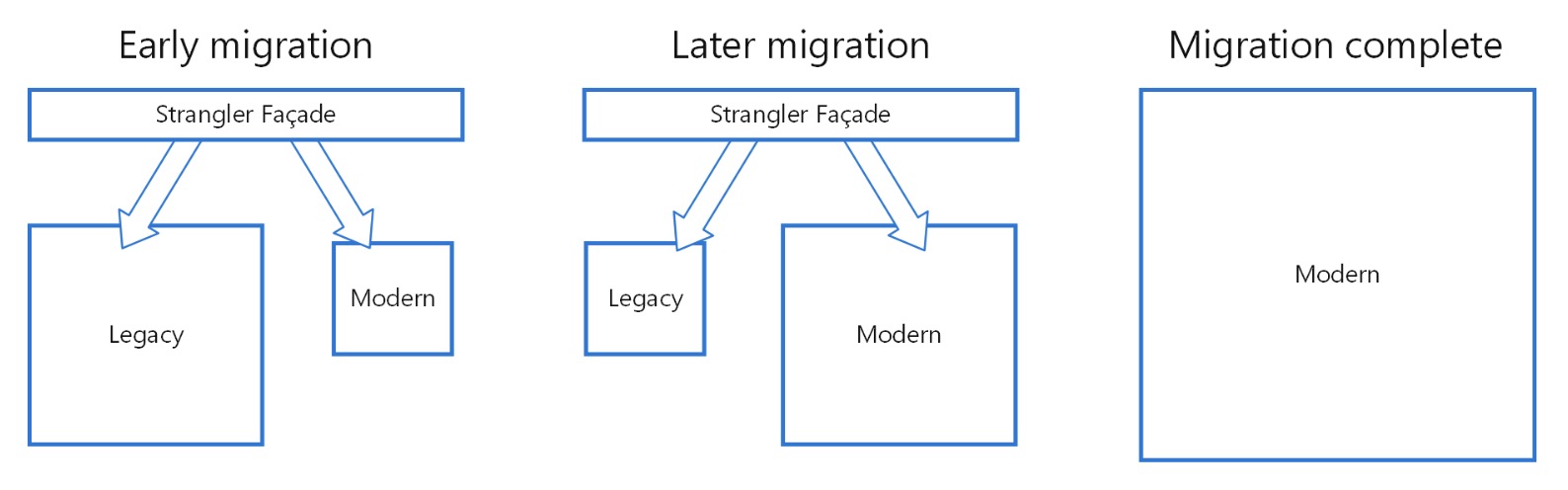

use the Strangler pattern

https://learn.microsoft.com/en-us/azure/architecture/patterns/strangler-fig

Microservices Anti Patterns

Microservices != Magic Pixey Dust
The more, the merrier
- risk of unnecessary complexity
- risk that changes impact numerous services
- risk of complex security

Microservices Advantages and Drawbacks

Benefits

improved fault isolation
eliminate vendor or technology lock-in
ease of understanding
smaller and faster deployments
scalability

Drawbacks

complexity is added to resolve complexity issues
- is your team trained, ready and has made POCs?
- don't start with a complex infrastructure
testing may appear simpler, but is it?
deployment may appear simpler, but is it?
- hard to do with multiple teams
- one microservice update can impact many microservices
multiple databases?
latency issues
transient errors
multiple point of failures
how about security?

Welcome to Cloud Native!

within a short time, cloud native has become a driving trend in the software industry
- it's a new way to think about building complex systems
- takes full advantage of modern software development practices, technologies, and cloud infrastructure
- widely popular in the open-source communities

Definition:

uses containers, service meshes, microservices, immutable infrastructure and declarative APIs
enable loosely coupled systems
resilient, manageable and observable
robust automation
make high-impact changes frequently

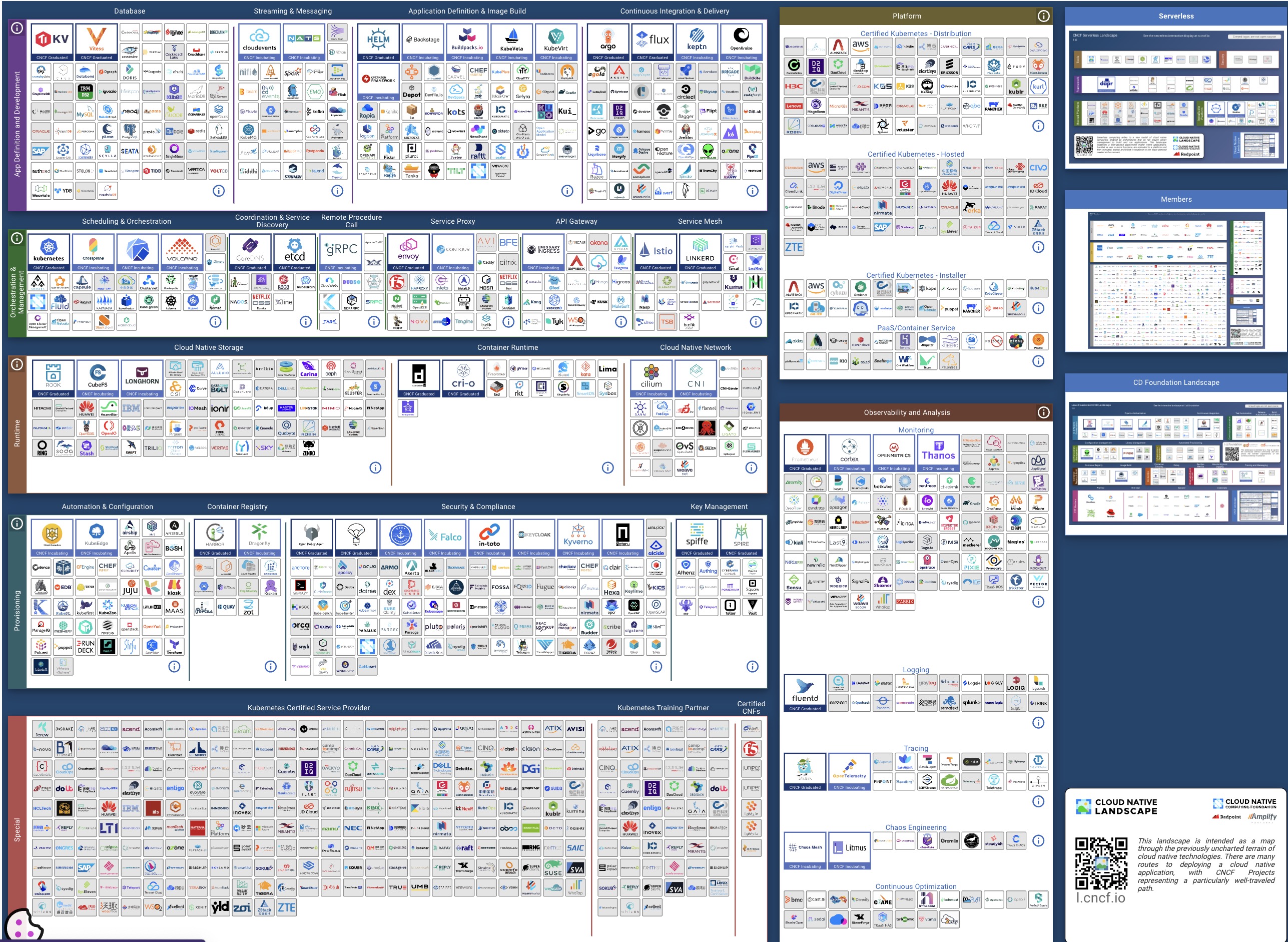

ecosystem of open source, vendor neutral projects

https://landscape.cncf.io/

Cloud Native Concepts

Speed and Agility

Users want...
- instantaneous responsiveness
- up-to-the-minute features
- no downtime
Businesses want...
- accelerate innovation
- rapid releases of features to meet disruption from competitors
- increase confidence-stability/performance

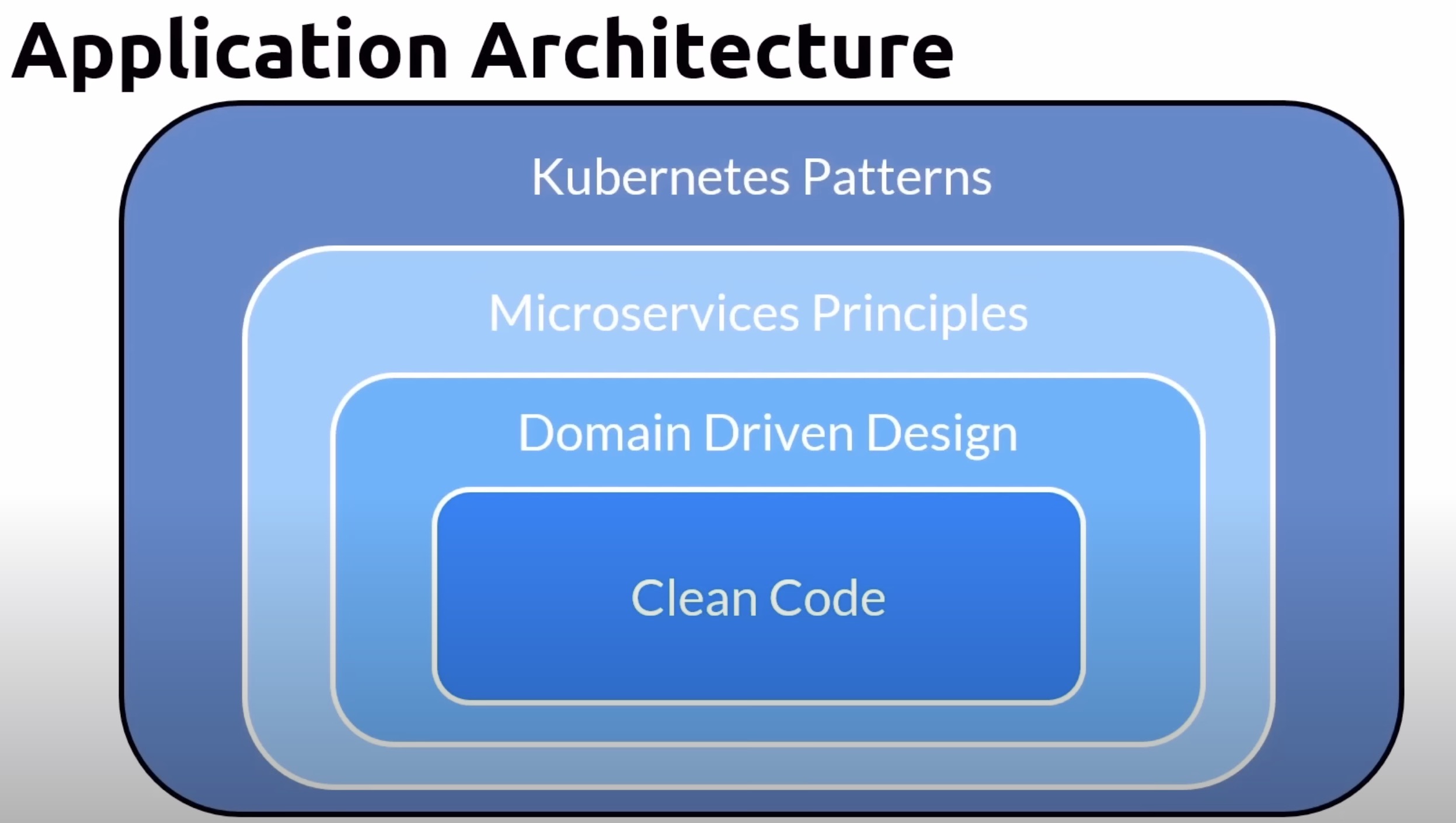

Application Architecture

Mentality: Pets vs Cattle

infrastructure becomes immutable and disposable
provisioned in minutes and destroyed on demand
never updated or repaired but re-provisioned

CNCF Trail Map

breaks the journey into measurable objectives
set key performance indicators
- measurable values

Introduction to Containers

Container Concepts

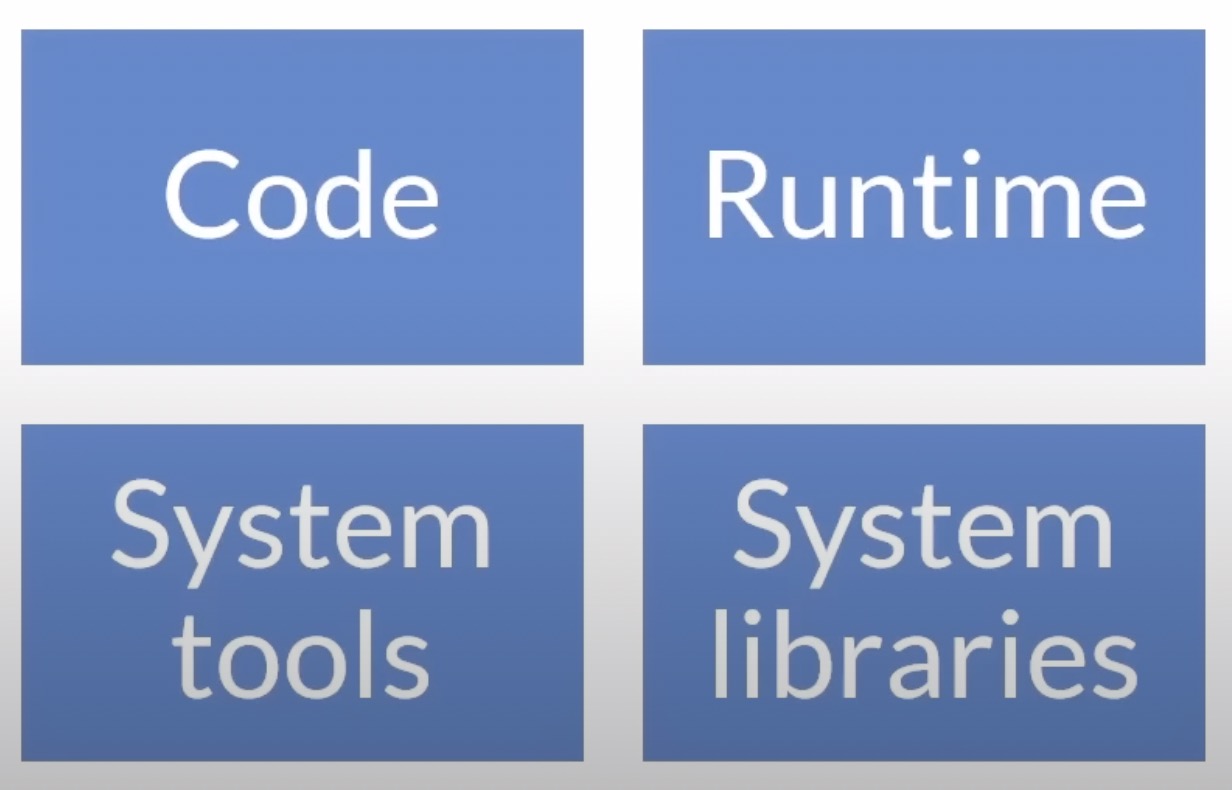

What is a container?

A unit of software/deployment

Why use containers?

move faster by deploying smaller units
user fewer resources
fit more on a server
faster automation
portability
isolation

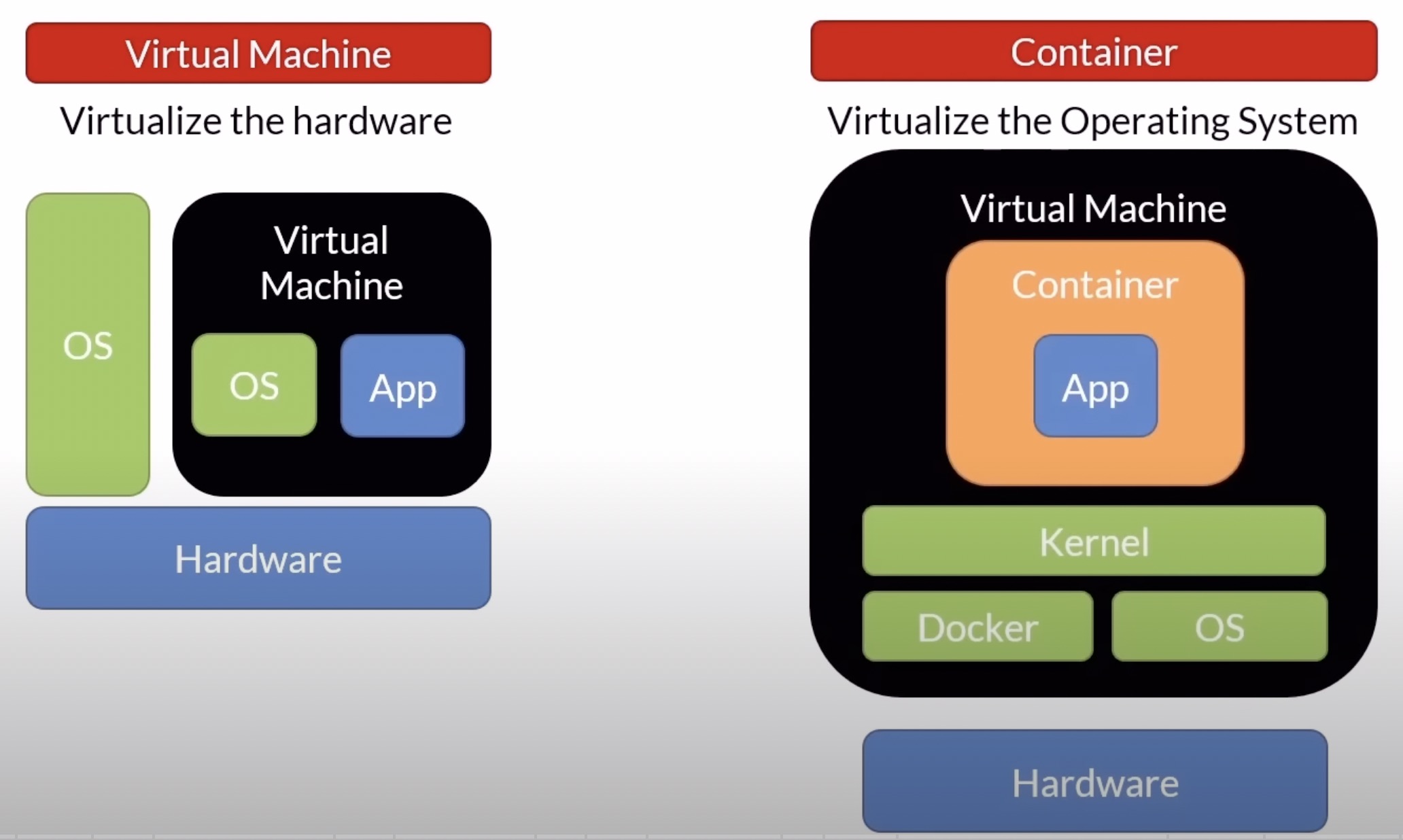

What is virtualized?

VM vs Containers

Virtual Machine	Container
large footprint	light weight
slow to boot	quick to start (it does not have to boot)
ideal for long running tasks	portable
	ideal for short lived tasks

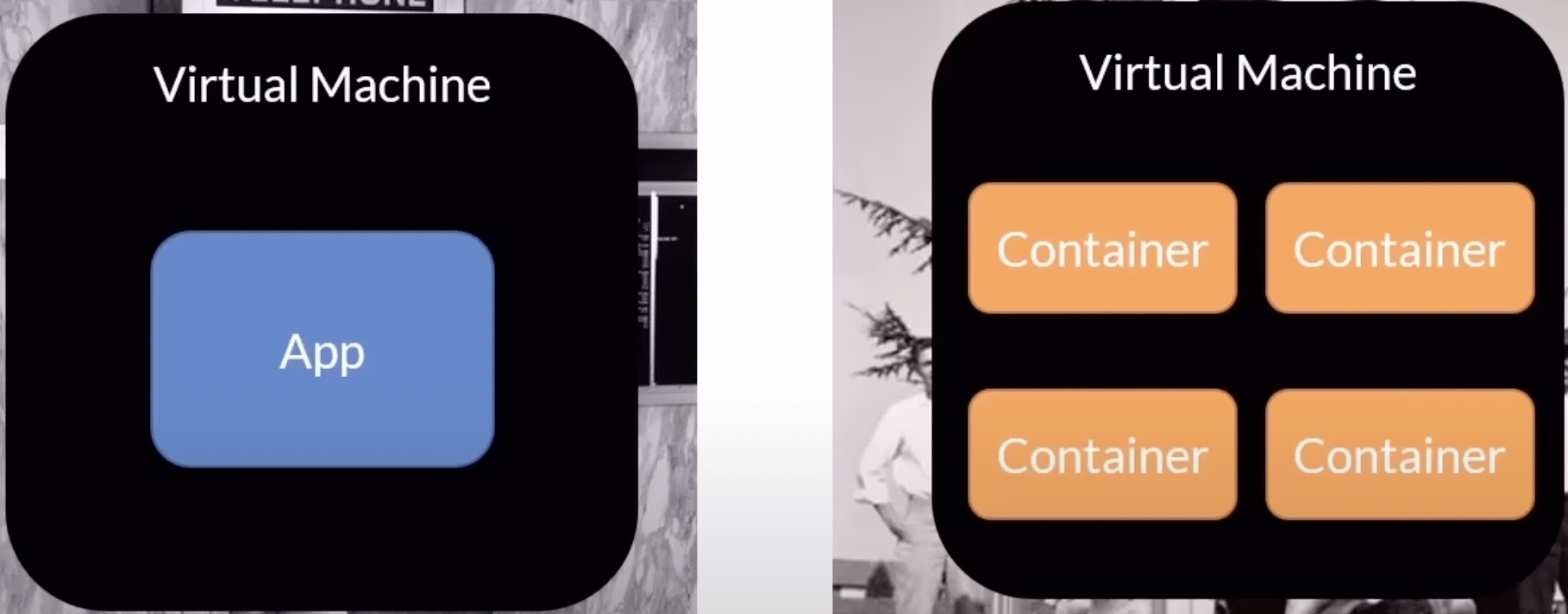

Density

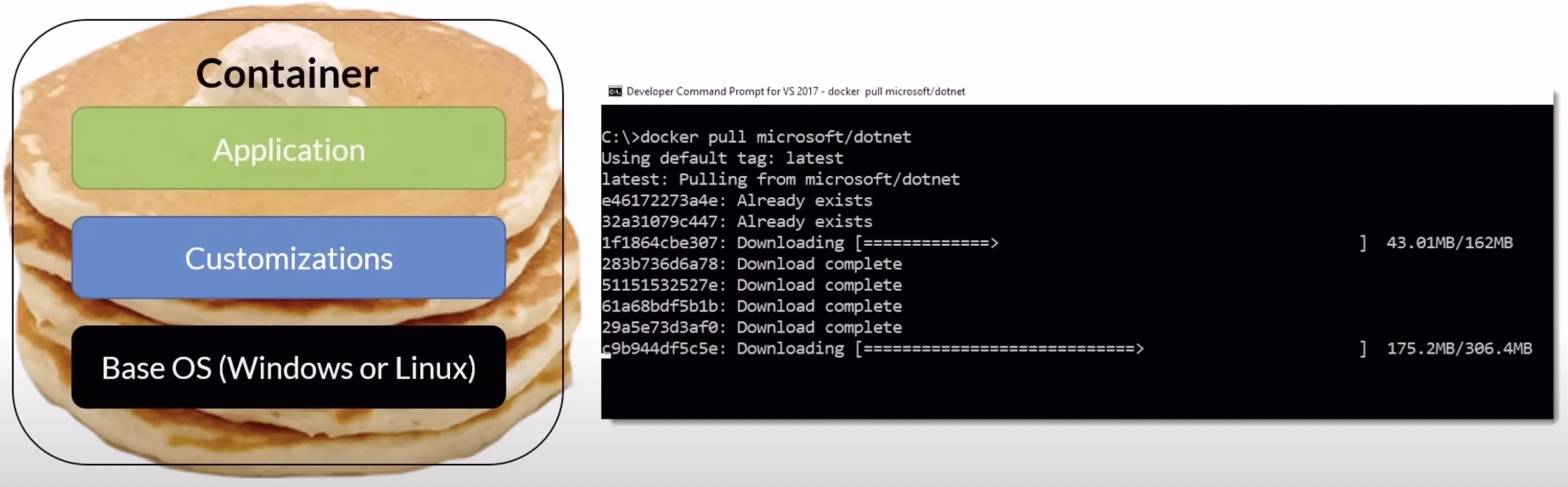

Containers are made of layers

Container Registry

centralized container repository

Orchestrator

manage
- infrastructure
- containers
- deployment
- scaling
- failover
- health monitoring
- apps upgrade, zero-downtime deployments
install your own
- Kubernetes, Swarm, Service Fabric
orchestrators as a service
- Azure Kubernetes Service, Service Fabric

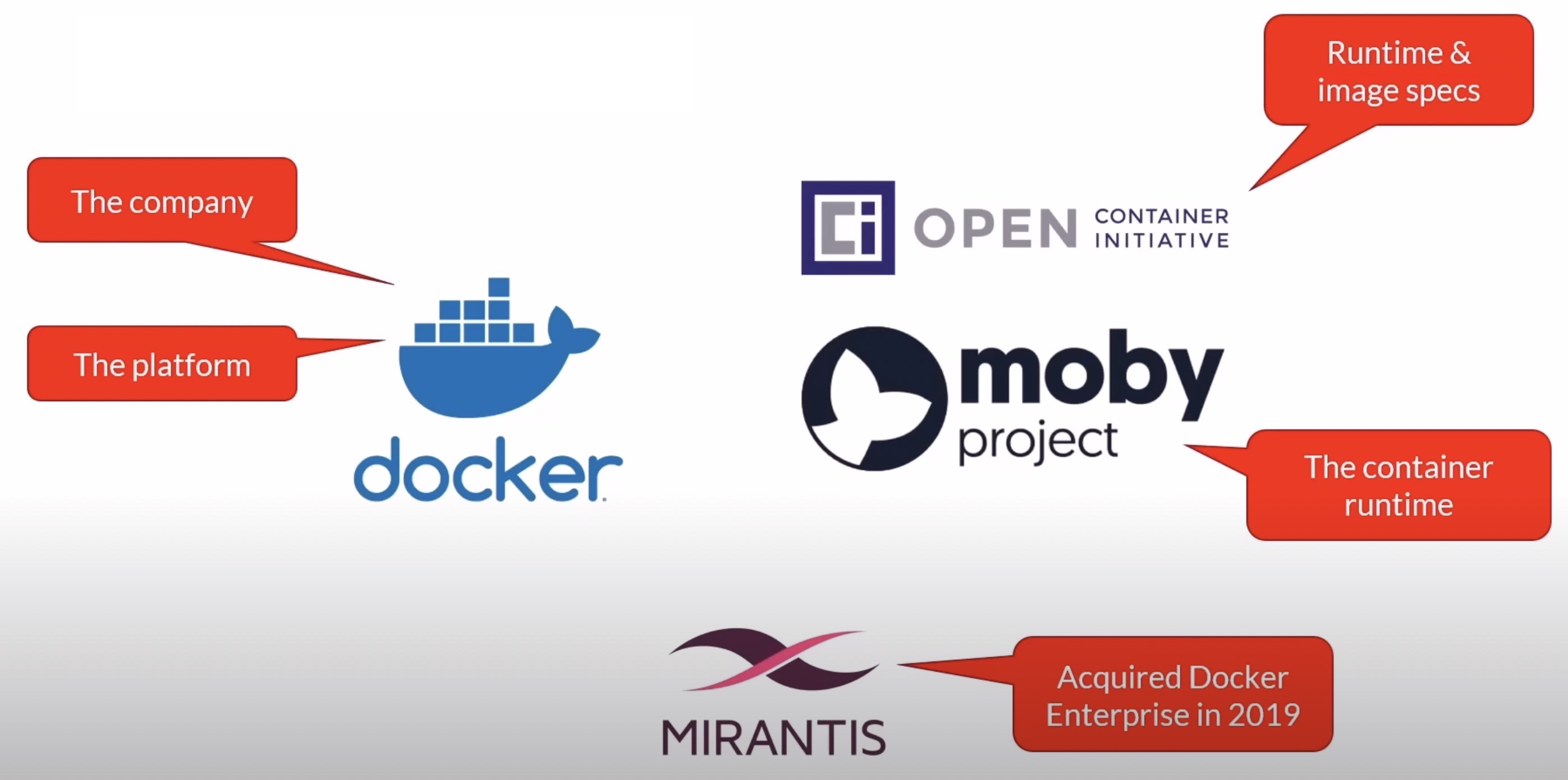

What is Docker?

an open source container runtime
Mac, Windows & Linux support
command line tool
"Dockerfile" file format for building container images
Windows lets you run Windows and Linux containers

Basic Commands

Command
`docker info`	Display system information
`docker version`	Display the system's version
`docker login`	Log in to a Docker Registry

Running Containers

Command
`docker pull [imageName]`	Pull an image from registry
`docker run [imageName]`	Run containers
`docker run -d [imageName]`	Detached mode
`docker start [containerName]`	Start stopped containers
`docker ps`	List running containers
`docker ps -a`	List all containers (running and stopped)
`docker stop [containerName]`	Stop containers
`docker kill [containerName]`	Kill containers
`docker image inspect [imageName]`	Get image info

[imageName] is the name of the image that is in the container registry
[containerName] is the name of the running container

Setting limits

Command
`docker run --memory="256m" ngix`	max memory
`docker run --cpus=".5" nginx`	max cpu

# pull and run a nginx server
docker run --publish 8080:80 --name webserver nginx

# list the running containers
docker ps

# stop the container
docker stop webserver

# remove the container
docker rm webserver

Attach a shell

Command
`docker run -it nginx -- /bin/bash`	attach shell
`docker run -it -- microsoft/powershell:nanoserverpwsh.exe`	attach powershell
`docker container exec -it [containerName] -- bash`	attach to a running container
`docker exec -it [containerName] bash`	alternate run a bash shell on a running container

Cleaning up

Command
`docker rm [containerName]`	removes stopped container
`docker rm $(docker ps -a -q)`	removes all stopped containers
`docker images`	list images
`docker rmi [imageName]`	deletes the image
`docker system prune -a`	removes all images not in use by any containers

Building Containers

Command
`docker build -t [name:tag] .`	builds an image using a Dockerfile located in the same folder
`docker build -t [name:tag] -f [fileName]`	builds an image using a Dockerfile in a different folder
`docker tag [imageName] [name:tag]`	tag an existing image

Dockerfile—static HTML site

FROM nginx:alpine
COPY . /usr/share/nginx/html

FROM line specifies the base image
COPY copies everything from the current folder (.) to a specified folder inside the container (/usr/share/nginx/html)

# build
docker build -t webserver-image:v1 .

# run
docker run -d -p 8080:80 webserver-image:v1

# display
curl localhost:8080

Dockerfile - node site

FROM alpine
RUN apk add -update nodejs nodejs-npm
COPY . /src
WORKDIR /src
RUN npm install
EXPOSE 8080
ENTRYPOINT ["node", "./app.js"]

Docker CLI - Tagging

docker tag => Create a target image
- name:tag
  - myimage:v1
- repository/name:tag
  - myacr.azurecr.io/myimage:v1

Docker Containers and Kubernetes Fundamentals

Persisting Data

Containers are Ephemeris and Stateless

short-lived
you usually don't store data in containers
non-persistent data
- locally on a writable layer
- it's the default, just write to the filesystem
- when containers are destroyed, so is the data inside them
Persist data
- stored outside the container in a volume
- a volume is mapped to a logical folder

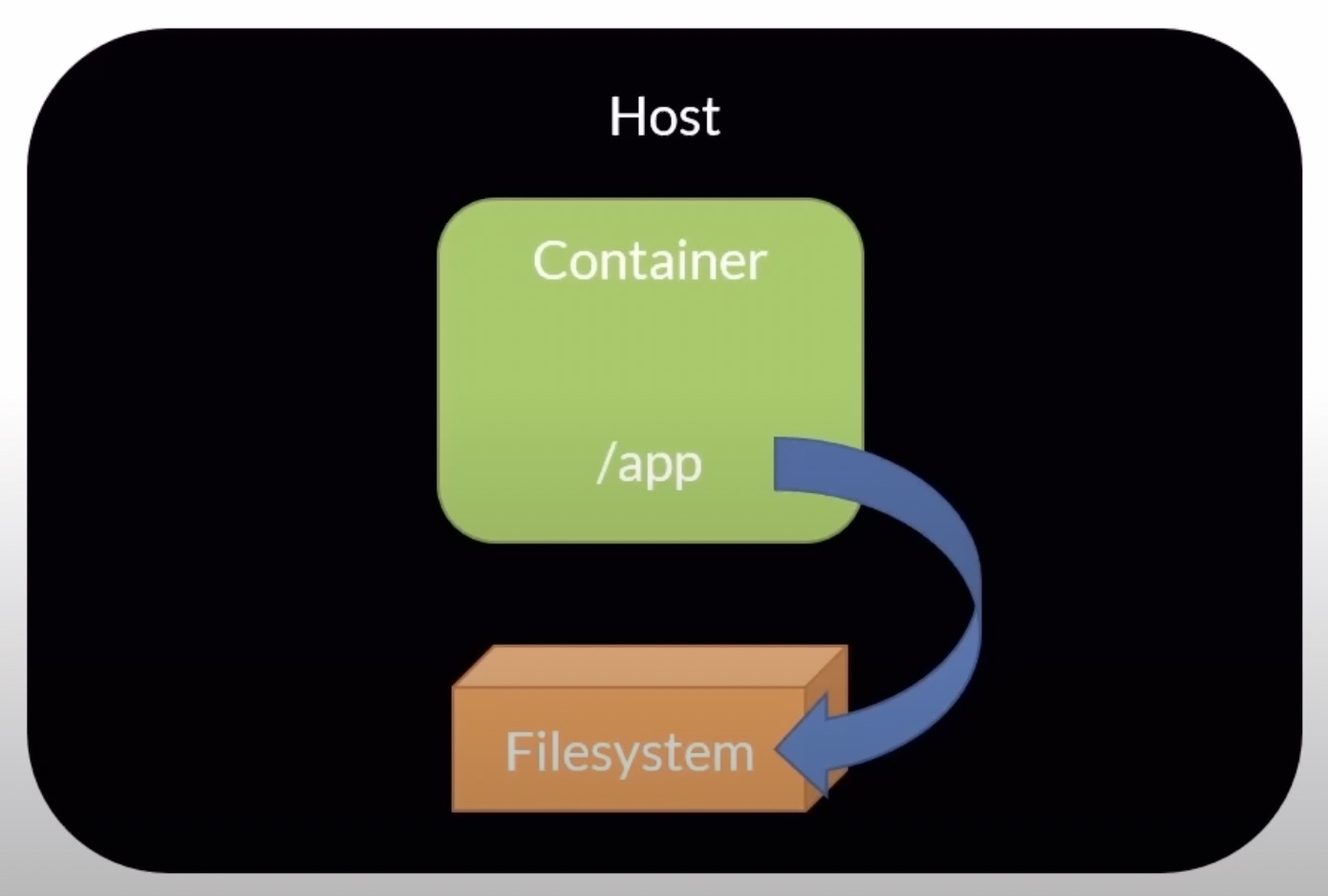

Volumes

maps a folder on the host to a logical folder in the container

Docker Volumes Concepts

Command
`docker create volume [volumeName]`	created a new volume
`docker volume ls`	list the volumes
`docker volume inspect [volumeName]`	display volume infor
`docker volume rm [volumeName]`	deletes a volume
`docker volume prune`	deletes all volumes not mounted

Mapping a Volume

# create a volume
docker create volume myvol

# inspect the volume
docker volume inspect myvol

# list the volumes
docker volume ls

# run a container with a volume
docker run -d --name devtest -v myvol:/app nginx:latest

-v mvol:/app mapping the volume to a logical folder

Mapping to a local folder

# run a container with a volume
docker run -d --name devtest -v d:/test:/app nginx:latest

# inspect the container
docker inspect devtest

d:/test specifies the local folder

Docker Compose

Understanding the YAML File Structure

"YAML" -> YAML Ain't Markup Language
a human-friendly data serialization language for all programming languages
used by Docker-Compose and Kubernetes

# Comments in YAML look like this

key: value
another_key: Another value goes here.
a_number_value: 100

# Nesting uses indentation. 2 space indents are preferred (but not required).
a_nest_map:
  key: value
  another_key: another value
  another_nest_map:
    hello: hello

# Sequences (equivalent to lists or arrays) look like this
# (note the '-' counts as an indentation):
a_sequence:
  - item1 # Indentation again!
  - item2

# Since YAML is a superset of JSON, you can also write JSON-style maps and sequences:
json_map: { "key": "value" }
json_seq: [ 3, 2, 1, "takeoff" ]

Docker Compose Concepts

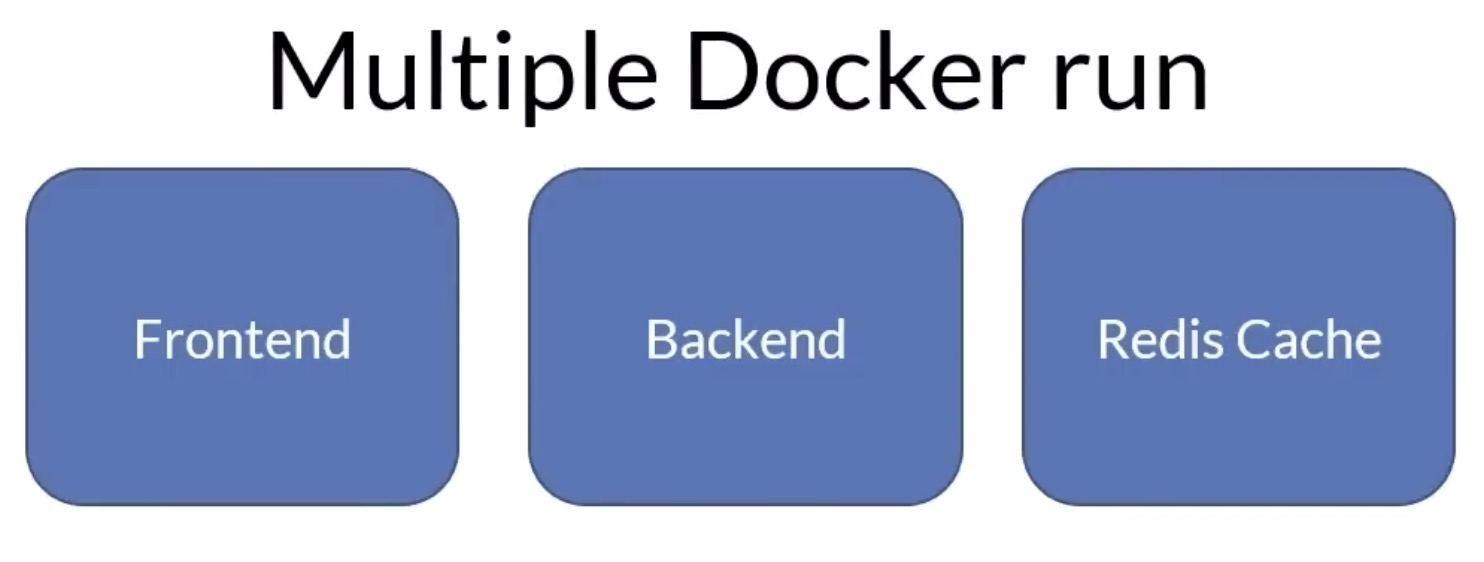

Multi Containers App

define and run multi-containers applications
define using a single YAML file
run using the docker CLI with the Compose plugin
- Docker Compose
Compose specs
- https://compose-spec.io

Compose V2

GA at DockerCon Live 2022
Incorporates the docker compose command into the Docker CLI
- You type docker compose instead of docker-compose
- drop in replacement for Docker Compose V1
- docker compose v2 commands maps directly to docker compose v1
install the Docker Desktop
- Linux: apt-get install docker compose-plugin
written in Go
- Docker Compose V1 written in Python

version: '3.9'

services:
  webapi1:
    image: academy.azurecr.io/webapi1
    ports:
      - '8081:80'
    restart: always

  webapi2:
    image: academy.azurecr.io/webapi2
    ports:
      - '8082:80'
    restart: always

  apigateway:
    image: academy.azurecr.io/apigateway
    ports:
      - '8080:80'
    restart: always

Use Cases

workloads that don't require a full orchestrator (such as Kubernetes)
development and tests
use of a service that can run docker compose files
- Azure App Service
- AWS ECS
- virtual machines

Using Docker Compose

Docker Compose Commands

Command
`docker compose build`	build the images
`docker compose start`	start the containers
`docker compose stop`	stop the containers
`docker compose up -d`	build & start
`docker compose ps`	list what's running
`docker compose rm`	remove from memory
`docker compose down`	stop and remove
`docker compose logs`	get the logs
`docker compose exec [container] bash`	run a command in the container

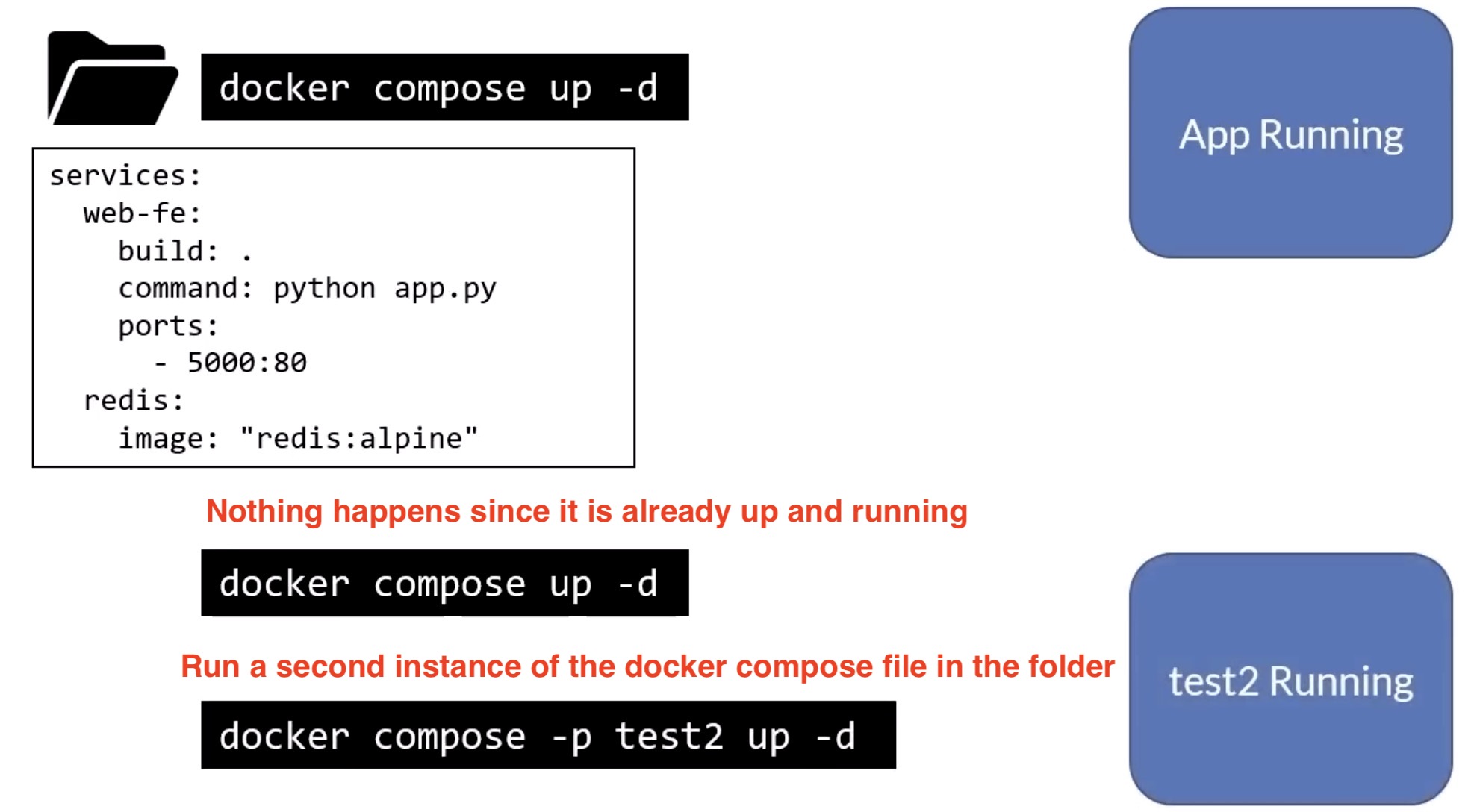

Projects

Docker Compose V2 - New Commands

Command
`docker compose --project-name test1 up -d`	run an instance as a project
`docker compose -p test2 up -d`	shortcut
`docker compose ls`	list running projects
`docker compose cp [containerId]:[SRC_PATH] [DEST_PATH]`	copy files from the container
`docker compose cp [SRC_PATH] [ContainerId]:[DEST_PATH]`	copy files to the container

# build the service
docker compose build

# bulids, (re)creates, starts, attaches to containers for a service
docker compose up

# list the services
docker compose ps

# bring down what was created by UP
docker compose down

Docker Compose Features

Resource Limits

services:
  redis:
    image: redis:alpine
    deploy:
      resources:
      limits:
        cpus: '0.5'
        memory: 150M
      reservations:
        cpus: '0.25'
        memory: 20M

In the above example, limits are what the container can use up to. Reservations are the initial allocation of resources.

Environment Variables

Inject an environment variable that will be in the running instance

services:
  web:
    image: nginx:alpine
    environment:
      - DEBUG=1
      - FOO=BAR

These must be set for each service.

Can be overridden at the CLI

# set an environment variable
docker compose up -d -e DEBUG=0

# set an environment variable
export POSTGRES_VERSION=14.3

# powershell
$env:POSTGRES_VERSION= "14.3"

or in a .env file located in the same directory as the compose file.

POSTGRES_VERSION=14.3

services:
  db:
    image: 'postgres:${POSTGRES_VERSION}'

Networking

By default, all containers specified in a Compose file will be able to see each other using their service name.

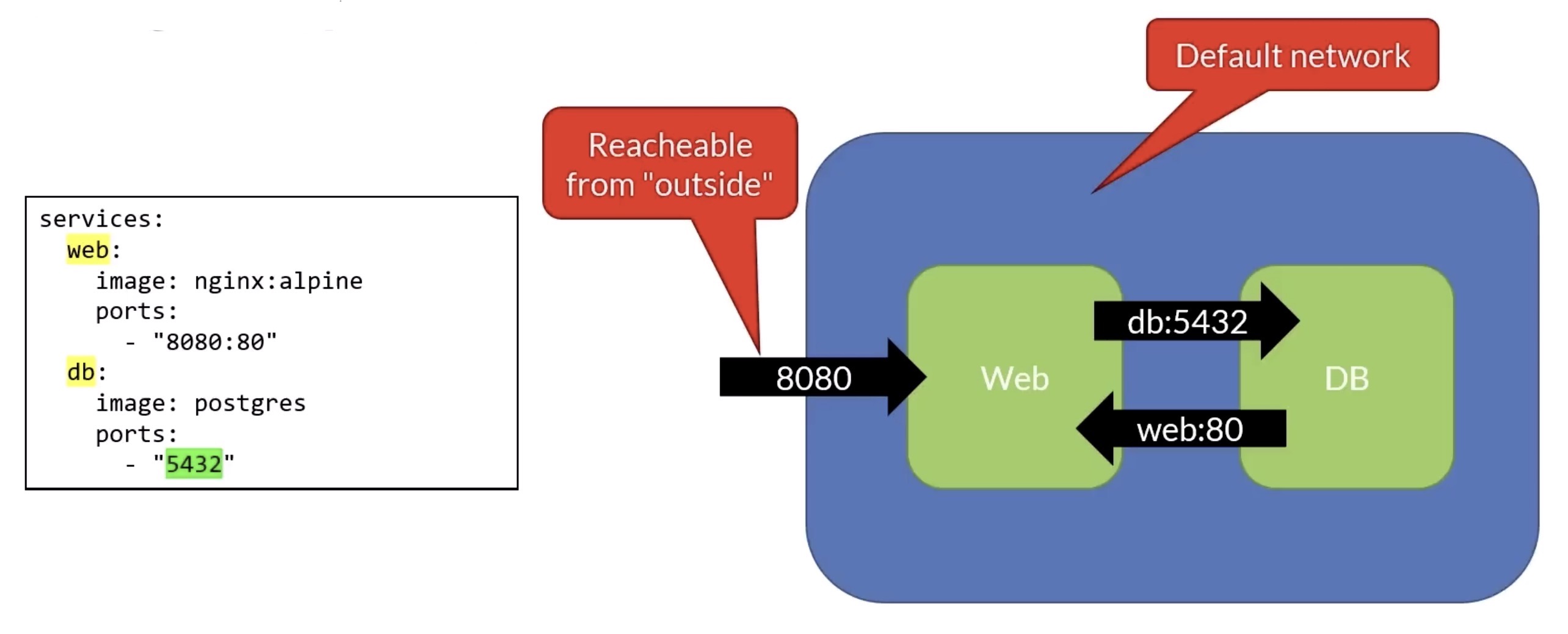

single container networking

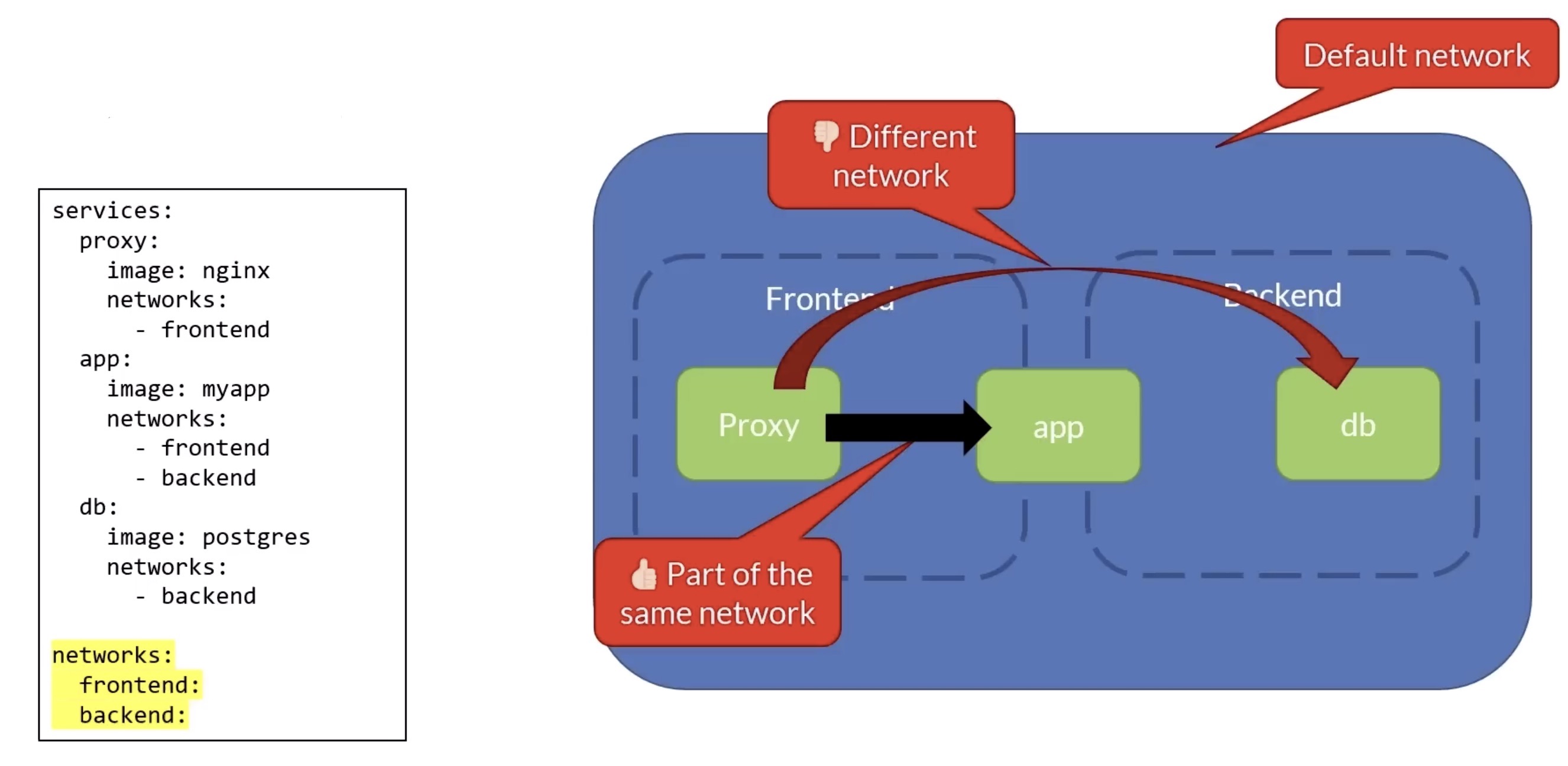

multi-container networking

Dependence

services:
  app:
    image: myapp
    depends_on:
      - db
  db:
    image: postgres
    networks:
      - back-tier

Since the app depends on db, compose will start up db service first and then start app

Volumes-named

services:
  app:
    image: myapp
    depends_on:
      - db
  db:
    image: postgres
    volumes:
      - db-data:/etc/data
    networks:
      - back-tier

volumes:
  db-data:

when mapping, you can also append :ro or :rw at the end of the virtual path where the volume is mapped

Volumes

services:
  app:
    image: myapp
    depends_on:
      - db
  db:
    image: postgres
    volumes:
      - ./db:/etc/data
    networks:
      - back-tier

declared at the service level

Restart Policy

services:
  app:
    image: myapp
    restart: always
    depends_on:
      - db
  db:
    image: postgres
    restart: always

no
- this is the default restart policy
- does not restart a container under any circumstances
always
- always restarts the container until its removal
on-failure
- restarts a container if the exit code indicates an error
unless-stopped
- restarts a container irrespective of the exit code but will stop restarting when the service is stopped or removed

Container Registries

Container Registries Concepts

What are container registries?

central repository for container images
private or public
Docker Hub
- hub.docker.com
Microsoft
- Azure Container Registry
- Microsoft Container Registry (public images)
  - mcr.microsoft.com
- AWS Elastic Container Registry
- Google Container Registry

Push/Pull Images from Docker Hub

# login to Docker Hub
docker login -u <username> -p <password>

# tag the image previously built
docker tag my_image k8sacademy/my_image:latest

# push the image
docker push k8sacademy/my_image:latest

# pull the image
docker pull k8sacademy/my_image:latest

Kubernetes Concepts

aka K8s (pronounced kates)
originate from Google
v1.0 released in July 2015
3rd generation container scheduler from Google
- previous Google internal projects: Borg and Omega
donated to the Cloud Native Computing Foundation (CNCF)
- www.cnfo.io

What is Kubernetes?

K8s is the leading container orchestration tool
designed as a loosely coupled collection of components centered around deploying, maintaining and scaling workloads
vendor neutral
- runs on all cloud providers
backed by a huge community

What can K8s do?

service discovery and load balancing
storage orchestration
- locally or cloud-based
automated rollouts and rollbacks
self-healing
secret and configuration management
use the same API across on-premise and every cloud provider

What K8s can't do?

does not deploy source code
does not build your application
does not provide application-level services
- message buses, databases, caches, etc.

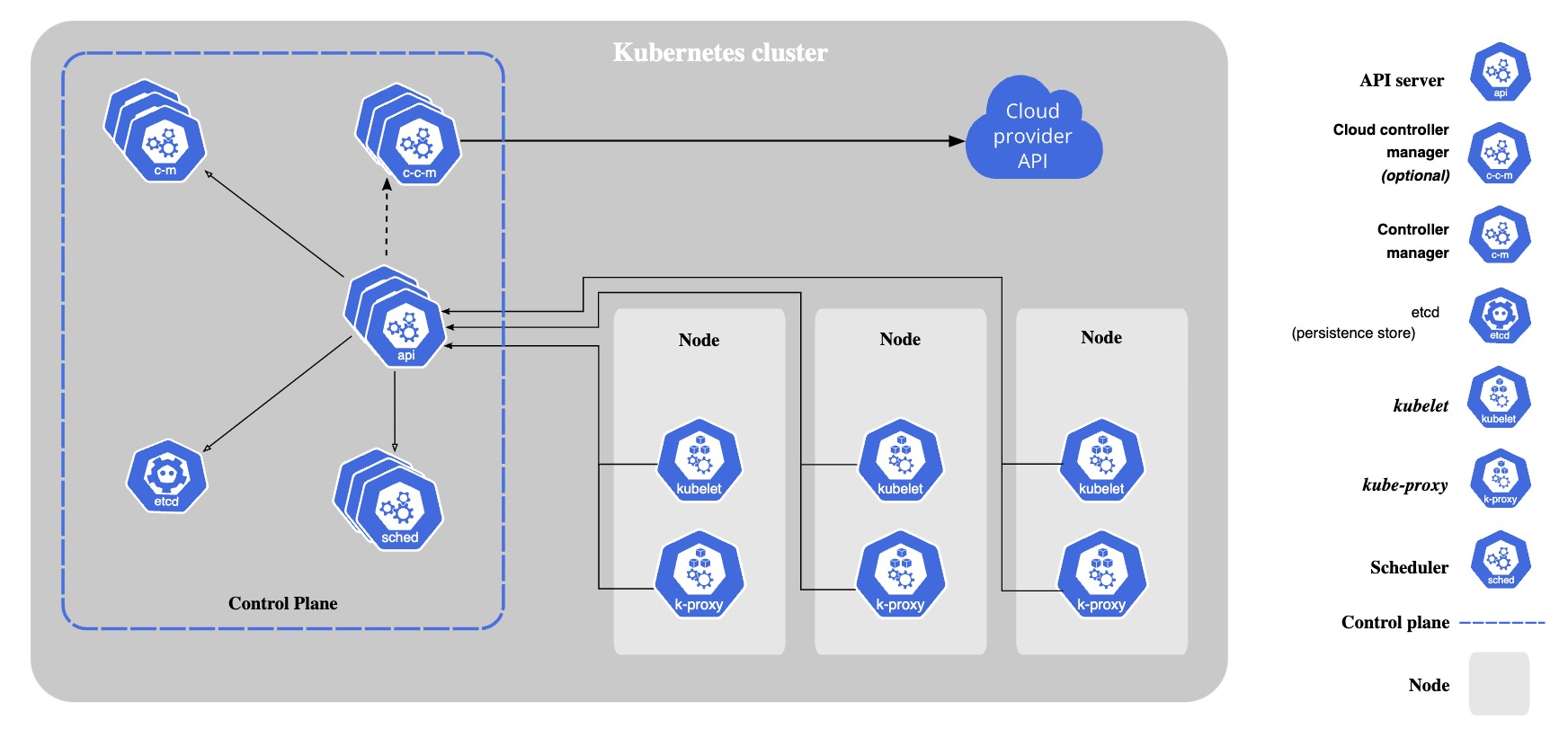

K8s Architecture

https://kubernetes.io/docs/concepts/overview/components

How to Run Kubernetes Locally

Local K8s

requires virtualization
- Docker Desktop
- MicroK8s
- Minikube
runs over Docker Desktop
- Kind
Limited to 1 node
- Docker Desktop
multiple nodes
- MicroK8s
- Kind
- Minikube

Local K8s—Windows

Docker Desktop is currently the only way to run both Linux and Windows containers
Docker Desktop can run on Hyper-V or WSL 2 (Windows 10 2004)
If Hyper-V is enabled, you can't run another hypervisor at the same time
You can install Minikube on Hyper-V of VirtualBox

Docker Desktop - macOS

run in a LinuxKit VM using the HyperKit lightweight hypervisor

Minikube

does not require Docker Desktop
installs on Linux, macOS, and Windows
- https://minikube.sigs.k8s.io/docs/start/
a hypervisor like VirtualBox is required

Minikube on macOS

install Minikube using Homebrew

Minikube Hyper-V Installation

in a Window terminal or Powershell prompt as admin
install the Chocolately package manager
Run: choco install minikube
create a network switch
- New-VM-Switch-Name " MinikubeNAT" -AllowManagement$True-NetAdapterName"<adapter_name>"
start Minikube
- minikube start --vm-driver hyper --hyper-virtual-switch "MinikubeNAT"
switch context
- kubectl config use-context minikube

Kind

Kubernetes in Docker
- https://kind.sigs.k8s.io/docs/user/quick-start/
runs on macOS, Linux and Windows
only requires Docker installed
- no need for another VM installation
- install the nodes as containers
Windows installation via Chocolately
- choco install kind
MacOS install via Homebrew
- brew install kind
multi nodes
High-Availability Control Plane
define in YAML

# HA-config.yaml
kind: Cluster
apiVersion: kind.sigs.k8s.io/v1alpha3
nodes:
  - role: control-plane # this is a master node (required)
  - role: worker
  - role: worker
  - role: worker

Docker Containers and Kubernetes Fundamentals

Introduction to Microservices

Microservices Concepts

Microservice Architecture

Monolithic Architecture

Microservices

From Monolith to Microservices

Microservices Anti Patterns

Microservices Advantages and Drawbacks

Benefits

Drawbacks

Welcome to Cloud Native!

Cloud Native Concepts

Speed and Agility

Application Architecture

Mentality: Pets vs Cattle

CNCF Trail Map

Introduction to Containers

Container Concepts

What is a container?

Why use containers?

What is virtualized?

VM vs Containers

Density

Containers are made of layers

Container Registry

Orchestrator

What is Docker?

Basic Commands

Running Containers

Setting limits

Attach a shell

Cleaning up

Building Containers

Dockerfile—static HTML site

Dockerfile - node site

Docker CLI - Tagging

Persisting Data

Containers are Ephemeris and Stateless

Volumes

Docker Volumes Concepts

Mapping a Volume

Mapping to a local folder

Docker Compose

Understanding the YAML File Structure

Docker Compose Concepts

Multi Containers App

Compose V2

Use Cases

Using Docker Compose

Docker Compose Commands

Projects

Docker Compose V2 - New Commands

Docker Compose Features

Resource Limits

Environment Variables

Networking

Dependence

Volumes-named

Volumes

Restart Policy

Container Registries

Container Registries Concepts

What are container registries?

Push/Pull Images from Docker Hub

Kubernetes Concepts

Kubernetes Concepts

What is Kubernetes?

What can K8s do?

What K8s can't do?

K8s Architecture

How to Run Kubernetes Locally

Local K8s

Local K8s—Windows

Docker Desktop - macOS

Minikube

Minikube on macOS

Minikube Hyper-V Installation

Kind

Kubernetes API
