AJAX (Asynchronous JavaScript And XML) | My Software Engineering Notes

Abbreviations

*[AJAX]: Asynchronous JavaScript And XML

Introduction

In this subunit, you'll learn how to use JavaScript to fetch and send data to and from the web! To do this, you'll be leveraging a set of web technologies called AJAX or Asynchronous JavaScript And XML. It might be a heroic nickname, but it's not the most accurate term anymore. Things have changed a lot since AJAX first stepped on the scene. You'll start the subunit focusing on the AJ part of AJAX - Asynchronous JavaScript. You'll learn what asynchronous code is and how to manage it with the newer features of JavaScript. Then, you'll learn about async functions, and finally, learn how to use JavaScript to make HTTP requests with AJAX!

We'll introduce you to making AJAX requests using a popular JavaScript library - Axios. At the end of the subunit, there will be a hands-on exercise.

Goals

Describe what AJAX is
Compare AJAX requests to non-AJAX requests
Make GET and POST AJAX requests with axios
Use async / await to manage asynchronous code with axios
Describe what JSON is

AJAX

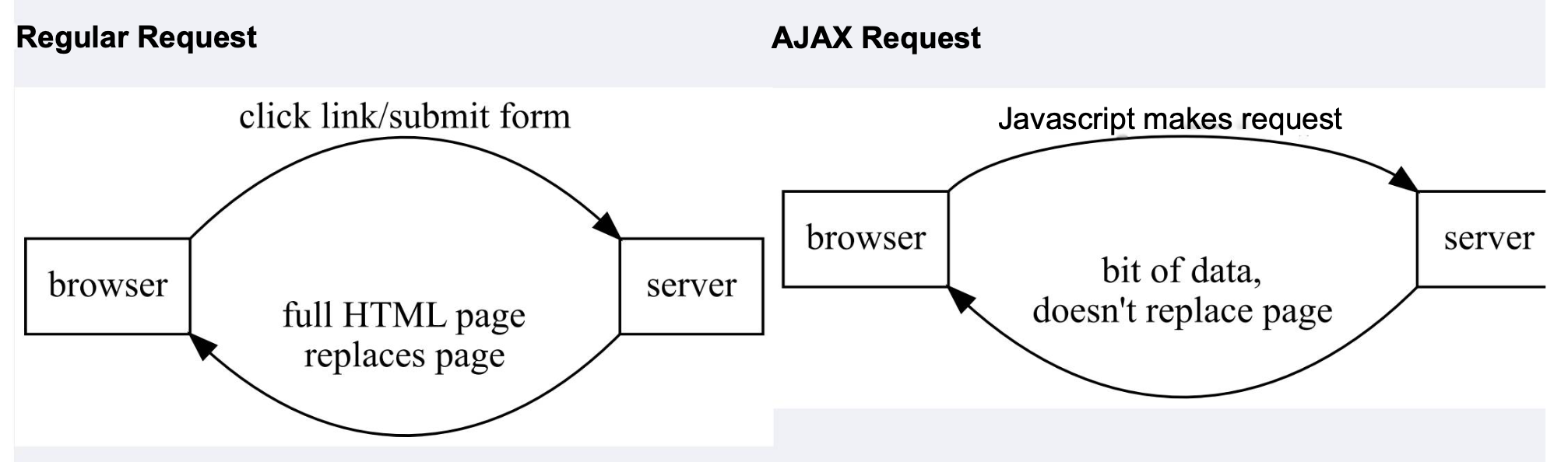

Traditional Requests

Traditional browser requests happen in response to:

Entering a URL in the browser bar
Clicking on a link
Submitting a form

In all cases:

Browser makes request
Receives response
Replaces entire resource with result

<!-- EXAMPLE 1: SIMPLE GET REQUEST -->
<h2>Simple GET Request</h2>
<a href="/card" class="btn btn-primary">Get Card</a>

<!-- EXAMPLE 2: SIMPLE POST REQUEST -->
<h2>Simple POST Request</h2>
<form action="/borrow" method="POST">
    <input name="amount" placeholder="Amount"/>
    <button class="btn btn-warning">Borrow</button>
</form>

AJAX Request

AJAX web request:

Made from JavaScript in browser
JavaScript makes request (GET, POST, or other)
You receive a response
Do whatever you want with result!

AJAX is a technique in Javascript for sending requests and receiving responses from a server without having to reload the browser page.

Why Use AJAX

Don’t need to reload entire page if just 1 thing is changing
Interactive websites
Fewer full page loads from server
- Your JS can talk to other servers directly
Less info has to go across network

AJAX with Axios

You don’t have to use Axios for this

There is an old, clunky built-in tool: (XMLHttpRequest)
Or a newer-but-still-clunky built-in tool: (fetch)
Or lots of other libraries (including jQuery)

... but we’ll use axios for now! It’s featureful & popular

Getting Axios

Can easily include it using a CDN link:

Making a Simple Request

axios.get(url);

Make a GET request to that URL

Not What We Expected

let card = axios.get('/api/card');
console.log(card);
// "Promise {<pending>}"

What’s A Promise

We’ll talk about it in more detail when we get to Node.
For now, all you need to know is that a promise is like a placeholder for a future value.
We want to wait for the promise to have that value before proceeding.
But we don’t know when the promise will receive its value!

Handling Asynchronous Code

Asynchronicity

AJAX requests are asynchronous

The axios.get() completes before the response is received
This means that if we want to use the data we get back from our AJAX requests, we need to wait until the response has been given to us
We’re going to use two newer keywords in JS to do this: async and await!

Await

Here’s what it looks like:

await axios.get('/api/card');
// returns response object, with `.data` as response body

The code is asynchronous, but it “waits” for the AJAX request to complete.

Async

Outside all functions (like in the console), you can just use await.

To use in a function, you must mark that function as async:

async function getCardInfo() {
  let response = await axios.get('/api/card');
  console.log('got', response);
  return response.data;
}

When calling async function, you should await it:

let card = await getCardInfo();

Callbacks vs Async/Await

Callbacks are what we’ve used for event handlers and timers
- But they’re tricky to nest or do other complex things
async/await makes it easier to handle chains of requests
- Modern libraries like Axios return “promises”, which you await

Axios API

.get

axios.get(url, [config]);

config is an optional object many Axios methods use

It holds specific configuration for what you need

demo/templates/index.html

<h2>Simple GET Request</h2>
<button class="btn btn-primary" id="card-btn">Get Card</button>
<div id="card" class="box"></div>
<script src="/static/card.js"></script>

demo/static/card.js

/* show ajax result directly in card box */

async function getCard() {
  let response = await axios.get('/api/card');

  console.log('getCard resp=', response);
  $('#card').html(response.data);
}

$('#card-btn').on('click', getCard);

To make request for /resource?a=1&b=2, can either use:

axios.get('/resource?a=1&b=2');

or

axios.get('/resource', { params: { a: 1, b: 2 } });

Second form is better: you don’t have to worry about how to “url safe quote” characters that aren’t normally legal in URLs.

.post

Similar to axios.get, but uses a POST request

axios.post(url, [data][config]);
axios.post(url, { a: 1, b: 2 });

This is passed as JSON to the server

demo/templates/index.html

<h2>Simple POST Request</h2>
<input id="amount" placeholder="Amount"/>
<button class="btn btn-warning" id="borrow-btn">Borrow</button>
<div id="borrowed" class="box"></div>
<script src="/static/borrow.js"></script>

demo/static/borrow.js

/* show result of borrowing in box */

function showBorrow(res) {
  $('#borrowed').html(res);
}

async function borrowMoney() {
  let amount = Number($('#amount').val());

  let response = await axios.post('/api/borrow', { amount });

  console.log('borrow resp=', response);
  showBorrow(response.data);
}

$('#borrow-btn').on('click', borrowMoney);

JSON

JSON is a string that looks like a JS object
Most APIs use JSON to communicate
By default, Axios recognizes JSON response & turns into JS object
By default, Axios sends POST data as JSON

demo/templates/index.html

<h2>Getting JSON Responses</h2>
<input id="ncards" value="5"/> Cards
<button class="btn btn-primary" id="hand-btn">Go!</button>
<div id="hand" class="box"></div>
<script src="/static/hand.js"></script>

demo/static/hand.js

/* show result of hand in box */

function showHand(hand) {
  let $box = $('#hand');
  $box.empty();

  for (let { rank, suit } of hand) {
    let t = `<p>${rank} of ${suit}</p>`;
    $box.append($(t));
  }
}

async function getHand() {
  let ncards = Number($('#ncards').val());

  let response = await axios.get('/api/hand', { params: { ncards } });

  console.log('getHand resp=', response);
  showHand(response.data.hand);
}

$('#hand-btn').on('click', getHand);

JSON.stringify({
  name: 'Whiskey',
  favFood: 'popcorn',
  birthMonth: 7,
});
// '{"name": "Whiskey", "favFood": "popcorn", "birthMonth": 7}'
JSON.parse('{"name": "Whiskey", "favFood": "popcorn", "birthMonth": 7}');
// {name: "Whiskey", favFood: "popcorn", birthMonth: 7}

Wrap Up

Big Ideas

Traditional web requests:
- Made by browser (via link, form, URL bar, etc)
- Replace entire page with thing linked to
AJAX requests:
- Made via JS AJAX calls
- JS get data; JS decides what to do with it
Axios is the popular AJAX client we’ll use
AJAX calls are asynchronous & return a “promise”
- You need to await those to get real results
- Functions that use await must be async
JSON
- Axios parses JSON responses automatically for us
